445nm 800mW 14-Pin Butterfly 105um Pigtailed

The 445nm 800mW 14-Pin butterfly 105um fiber pigtailed diode laser module is multi-mode diode laser products, the 105um, 200um and 400um fiber is optional. it incorporates the TE cooler, thermistor and photodiode, enabling efficient temperature control and power monitoring. The 445nm 800mW 14-Pin butterfly 105um fiber pigtailed diode laser module stands out for its high coupling efficiency and extended lifespan, ensuring easy integration into customer equipment. It is extensively preferred by industrial and scientific professionals. The 14-Pin butterfly package laser modules are broadly applied in fields such as industrial processing, laser displays, sensing, medical applications, consumer electronics, communications, and scientific research. Wavespectrum Laser specializes in offering customized solutions for 445nm 14-Pin butterfly 105um fiber pigtailed diode laser module, ensuring that each customer’s specific requirements are meticulously accommodated.

Categories: 445nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is delighted to introduce our 445nm 800mW 14-Pin butterfly 105um fiber pigtailed diode laser module. We are also well-prepared to deliver various power configurations of the 445nm 14-Pin butterfly 105um fiber pigtailed diode laser module, ensuring we meet the diverse needs of our customers. In addition, we offer a comprehensive portfolio of near wavelength laser products, which encompasses 400nm, 455nm, 480nm, 488nm, 495nm, 505nm, 520nm, 635nm, 660nm, and 670nm laser options.

Product Feature of 445nm 800mW 14-Pin butterfly 105um fiber pigtailed diode laser module

Part Number: WSLX-445-800m-M-H14-T-PD

Wavelength: 445nm

Output Power: 800mW

Package: 14-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 445nm 800mW 14-Pin butterfly 105um fiber pigtailed diode laser module

Specifications	WSLX-445-800m-M-H14-T-PD
	Min.	Type	Max.
Center Wavelength@25℃	440nm	450nm	460nm
Spectral Width (FWHM)	----	2nm	----
Output Power	----	800mW	----
Recommend Operating Temperature	25 °C
Threshold Current (Typ.)	----	0.2A	----
Operating Current (Typ.)	----	1.1A	----
Operating Voltage	----	6.0V	----
TEC Max Current	2A
TEC Max Voltage	8V
Fiber Type	Multi-mode Fiber
Fiber Core	105um（50um, 62.5um optional）
Fiber Length	>80cm
Connector Type	SMA905/FC
Package	14-Pin

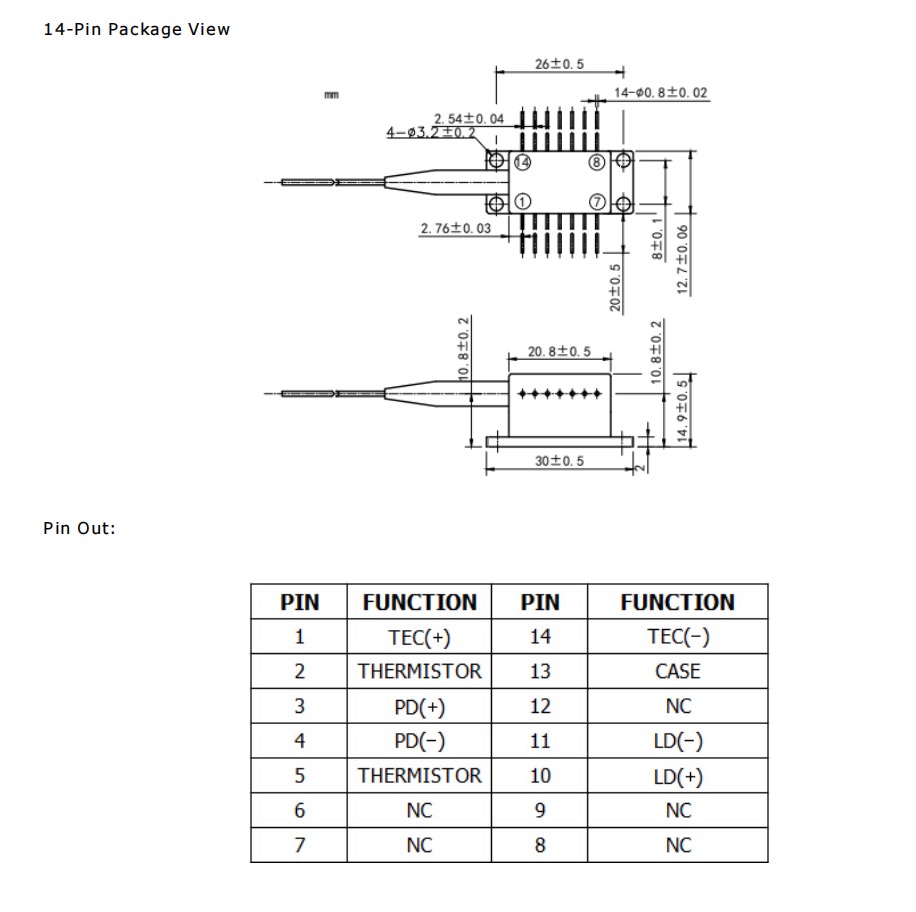

Product Drawing of 445nm 800mW 14-Pin butterfly 105um fiber pigtailed diode laser module

Product Application of 445nm 800mW 14-Pin butterfly 105um fiber pigtailed diode laser module

Medical Treatment

Biological Detection

Sensing Application

445nm-800mw-14-pin-butterfly-105um-fiber-pigtailed-diode-laser-module-939881.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
