405nm 200mW with TE Cooler

405nm 200mW with TE cooler fiber coupled laser diode module is with 50um multi-mode fiber, the FC, SC, ST and SMA905 Connector is optional. This diode laser module is included the Semiconductor cooler and thermistor, it is convenience for customers to control the operating temperature, we recommend operators to prepare the suitable heat-sink and fans to dissipate the heat produced by the laser module. This 405nm 200mW with TE cooler fiber coupled laser diode module is with high coupling efficiency and high performance, received the favor and praise of domestic and foreign industrial and scientific research customers. This LD module is with compact package size, which makes it is easy to integrate into the customer’s equipment. Wavespectrum Laser can also customize the other power version 405nm with TE cooler fiber coupled laser diode module according to the customer’s requirement.

Categories: 405nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 405nm 200mW with TE cooler fiber coupled laser diode module, and we can also supply the different power version 405nm with TE cooler fiber coupled laser diode module to customers. For the near wavelength laser products, we can also offer the 375nm, 395nm, 400nm, 420nm, 435nm, 455nm, 465nm, 505nm and 520nm laser products to customers.

Product Feature of 405nm 200mW with TE Cooler Fiber Coupled Laser Diode Module

Part Number: WSLX-405-200m-50M-H-T

Wavelength: 405nm

Output Power: 200mW

Package: HHL-01

Fiber Core: 50um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD Optional

FP Laser Products

Product Parameter of 405nm 200mW with TE Cooler Fiber Coupled Laser Diode Module

Specifications	WSLX-405-200m-50M-H-T
	Min.	Type	Max.
Center Wavelength@25℃	405nm±10nm
Spectral Width (FWHM)	----	2nm	----
Output Power	----	200mW	----
Recommend Operating Temperature	25 °C
Threshold Current (Typ.)	----	130mA	190mA
Operating Current (Typ.)	----	300mA	320mA
Operating Voltage	----	4.5V	5.5V
Monitor Current	----	----	----
TEC Max Current	3.5A
TEC Max Voltage	7.0V
Thermistor	10K
Fiber Type	UV Multi-mode Fiber
Fiber Core	50um
Fiber Length	>80cm
Connector Type	FC/SC/SMA905
Package Style	HHL-01

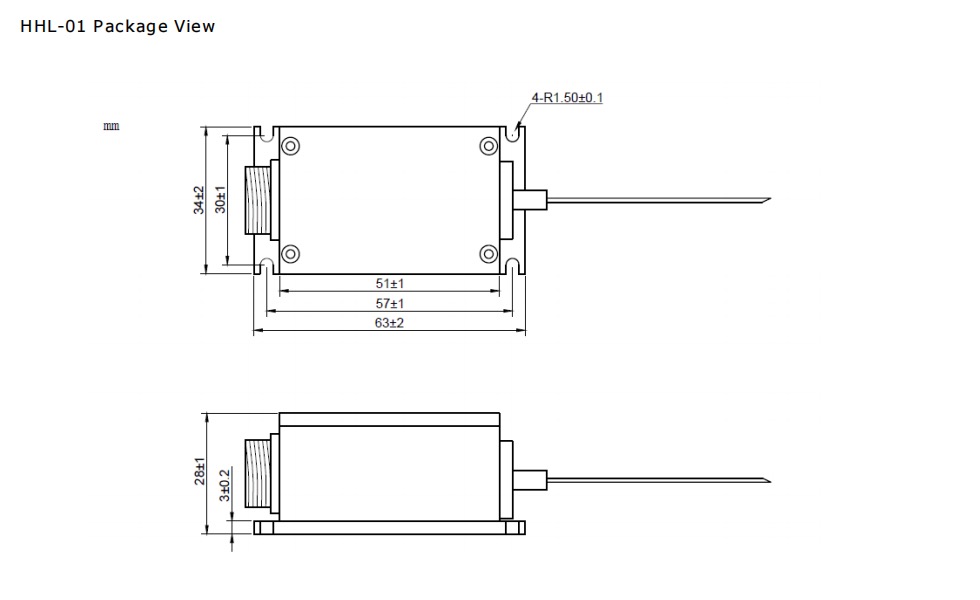

Product Drawing of 405nm 200mW with TE Cooler Fiber Coupled Laser Diode Module

Product Application of 405nm 200mW with TE Cooler Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application

405nm-200mw-with-te-cooler-fiber-coupled-laser-diode-module-365943.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
