405nm 15mW PM

405nm 15mW PM fiber coupled diode laser source is included the laser drive and TE cooling system, the output power can be adjustable, the operating temperature has been fixed, the input voltage is 90V～240VAC, it is very convenience for customers to operate. This 405nm 15mW PM fiber coupled diode laser source is with 3um Polarization Maintaining Fiber, it can get Gaussian Beam, the PER Ratio is >13dB, and the higher PER version laser product is optional, it is with high performance and long lifetime. This 405nm PM fiber coupled diode laser source is very safe for customers to use.

Categories: 405nm Ture-key Fiber Coupled Laser System, Ture-key Fiber Coupled Laser System

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 405nm 15mW PM Fiber coupled diode laser source, and we can also supply the different power version 405nm PM Fiber coupled diode laser source to customers. For the near wavelength laser product, we can offer the 400nm, 445nm, 480nm, 488nm, 495nm, 505nm, 520nm, 635nm, 660nm and 670nm laser products to customer.

Product Feature of 405nm 15mW PM Fiber Coupled Diode Laser Source

Wavelength: 405nm
Output Power: 15mW
Fiber Type: Polarization Maintaining Fiber (PMF)
Fiber Core: 3um
Connector: FC/APC
Input Voltage: 90V～240VAC
Built-in TE Cooling system
FP Laser Products

Product Parameter of 405nm 15mW PM Fiber Coupled Diode Laser Source

Specification		WSLS-405-015m-PM
		Min.	Type	Max.
Optical Data	Wavelength	±5nm	405nm	±10nm
	Output Power	0-15mW Adjustable
	Spectral Width	-	2nm	-
	Polarization Extinction Ratio	13dB	15dB	-
		Higher Polarization Extinction Ratio(PER)Version is Also Available,Please Contact Us.
	KEY Alignment Direction	Slow Axis Aligned to the Key of the FC Connector
	M²Value	<1.3
	Beam Type	Gaussian
Fiber Data	Fiber Core	3um
	N.A.	0.12
	Fiber Type	Polarization Maintaining Fiber
	Fiber Length	>80cm
	Connector	FC/APC(FC/PC optional)
Control Data	Operation Mode	CW
		TTL Modulation(optional)
		Analog Modulation(optional)
	Power Stability (for 2 hrs)	1%	-	3%
	Cooling Way	Buit-in TEC cooling
Environmental Conditions	Operation Temperature	10℃-40℃
	Storage Temperature	-20℃-60℃
	Preheating time	5 minutes(Max.)
Power Supply	AC(Standard)	90V-240VAC,50-60Hz
	DC(Optional)	+12V
Accessory	Collimator	Optiona
	Laser Safety Goggles	Optional

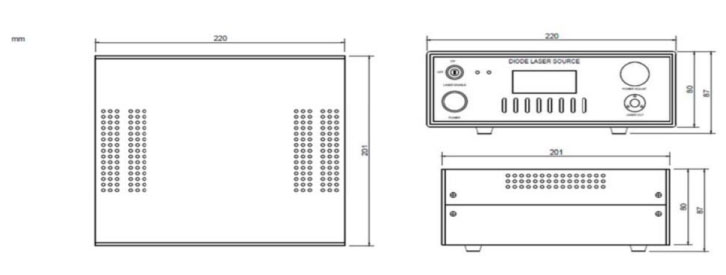

Product Drawing of 405nm 15mW PM Fiber Coupled Diode Laser Source

A100: 220mm*201mm*87mm

Product Application of 405nm 15mW PM Fiber Coupled Diode Laser Source

Medical Treatment
Biological Detection
Sensing Application

405nm-15mw-pm-fiber-coupled-diode-laser-source_51676.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
