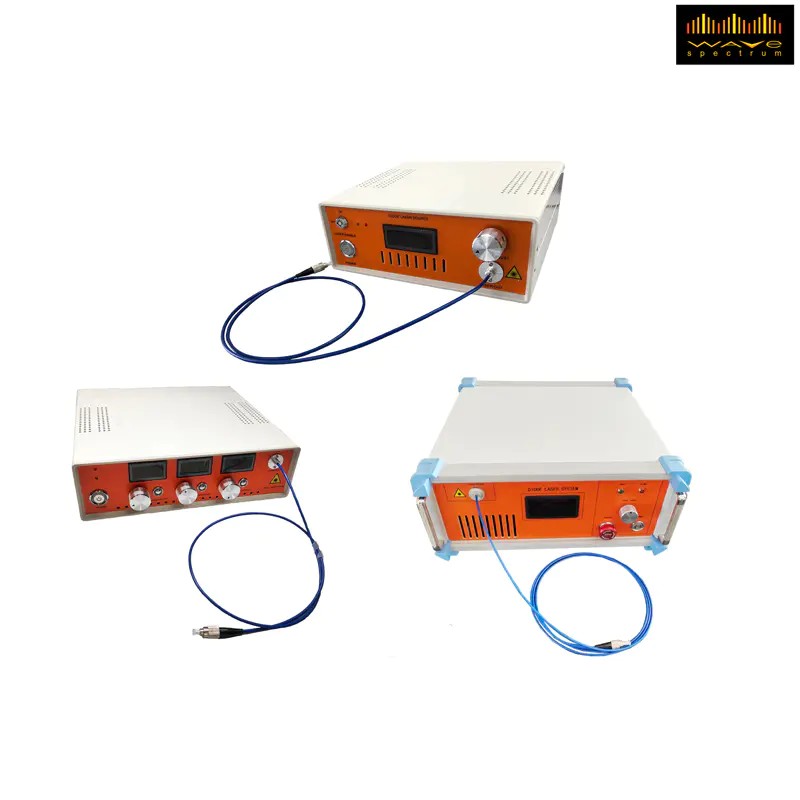

1470nm 15W with Red Aiming Beam

1470nm 15W Fiber Coupled Diode Laser Source with Red Aiming Beam is a comprehensive laser system that includes the laser drive, TE cooling system and Red Aiming Beam. If offers adjustable output power and operates at a fixed temperature, the input voltage is 90V～240VAC, it is very convenience for customers to operate. This 1470nm 15W Fiber Coupled Diode Laser Source is with 400um Multi-mode Fiber, it is integrated 660nm red aiming beam, which is very convenience for customers to align the laser beam, this laser system is with high performance and long lifetime. This 1470nm 15W Fiber Coupled Diode Laser Source is very safe and easy for customers to operate.

Categories: 1470nm Ture-key Fiber Coupled Laser System, Ture-key Fiber Coupled Laser System

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser is capable of providing the 1470nm 15W Fiber Coupled Diode Laser Source with Red Aiming Beam. Moreover, we offer a variety of power configurations for the 1470nm Fiber Coupled Diode Laser Source to cater to diverse customer needs. In addition to these, our near-wavelength laser product range includes 880nm, 915nm, 980nm, 1064nm, 1310nm, 1450nm, 1490nm and 1550nm laser products.

Product Feature of 1470nm 15W Fiber Coupled Diode Laser Source with Red Aiming Beam

Wavelength: 1470nm
Output Power: 15W
Fiber Type: Multi-mode
Fiber Core: ＜400um
Connector: FC/PC
Input Voltage: 90V～240VAC
With 660nm Red Aiming Beam
Built-in TE Cooling system
FP Laser Products

Product Parameter of 1470nm 15W Fiber Coupled Diode Laser Source with Red Aiming Beam

Specification		WSLS-1470-015-M-A
		Min	Type	Max.
Optical Data	Central Wavelength	1440nm	1470nm	1500nm
	Output Power	0~15W Adjustable
	Spectral Width	--	10nm
	Aiming Beam	638nm 2mW
Fiber Data	Fiber Core	<400um
	N.A.	0.22
	Fiber Type	Multi-mode Fiber
	Fiber Length	>80cm
	Connector	FC/SMA905
Control Data	Operation Mode	CW
		TTL Modulation(optional)
		Analog Modulation(optional)
	Power Stability (for 2 hrs)	1%	----	5%
	Cooling Way	Bullt-inTEC cooling
Environmental Conditions	Operation Temperature	10°℃~40℃
	Storage Temperature	-20°C-60℃
	Preheating time	5 minutes(Max.)
Power Supply	AC(Standard)	90V~240VAC,50~60Hz
	DC(Optional)	+5V
Case Model Number		A-300
Accessory	Collimator	Optiona
	Laser Safety Goggles	Optiona

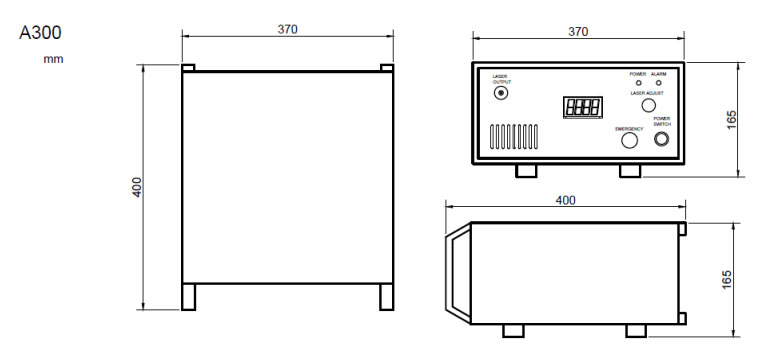

Product Drawing of 1470nm 15W Fiber Coupled Diode Laser Source with Red Aiming Beam

Dimension (Unit :mm)
400mm*370mm*165mm

Product Application of 1470nm 15W Fiber Coupled Diode Laser Source with Red Aiming Beam

Medical Treatment
Biological Detection
Sensing Application

1470nm-15w-fiber-coupled-diode-laser-source-with-red-aiming-beam_817432.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
