1064nm 8W 9-Pin with TEC

1064nm 8W 9-Pin with TEC fiber coupled laser diode module is included the TE Cooler, thermistor and photodiode, it is mainly used in high precision and high stability equipment. The fiber core of the laser module is 105um, and the fiber numerical aperture is 0.22, the SMA905, FC, ST and SC fiber connector is optional. This 1064nm 8W 9-Pin with TEC fiber coupled laser diode module is with high coupling efficiency and high performance, which makes it is easy to use in many fields. This laser module is with TE cooler and thermistor, it is easy for customers to control the operating temperature, and this laser module is included the photodiode, it is easy for customers to monitor the output power, Wavespectrum Laser can also customize the other power version 1064nm 9-Pin with TEC fiber coupled laser diode module according to the customer’s requirement.

Categories: 1064nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 1064nm 8W 9-Pin with TEC fiber coupled laser diode module, and we can also supply the different power version 1064nm 9-Pin with TEC fiber coupled laser diode module to customers. For the near wavelength laser products, we can also offer the 375nm, 750nm, 760nm, 780nm, 808nm, 820nm,830nm, 850nm and 980nm laser products to customers.

Product Feature of 1064nm 8W 9-Pin with TEC Fiber Coupled Laser Diode Module

Part Number: WSLX-1064-008-M-H9-T-PD

Wavelength: 1064nm

Output Power: 8W

Package: 9-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 1064nm 8W 9-Pin with TEC Fiber Coupled Laser Diode Module

Specifications	WSLX-1064-008-M-H9-T-PD
	Min.	Type	Max.
Center Wavelength@25℃	1064nm±20nm
Spectral Width (FWHM)	-----	4nm	-----
Output Power	7W	8W	-----
Temperature Coefficient of Wavelength	-----	0.3nm / °C	-----
Threshold Current (Typ.)	-----	0.5A	1.0A
Operating Current (Typ.)	-----	11.0A	12.0A
Operating Voltage	-----	1.7V	2.3V
Recommended Case Temperature	25°C
TEC Max. Current	6A
TEC Max. Voltage	9.8V
Thermistor	10K
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22
Fiber Length	>80cm
Package Style	9-Pin
Connector Type	SMA905/ST/FC

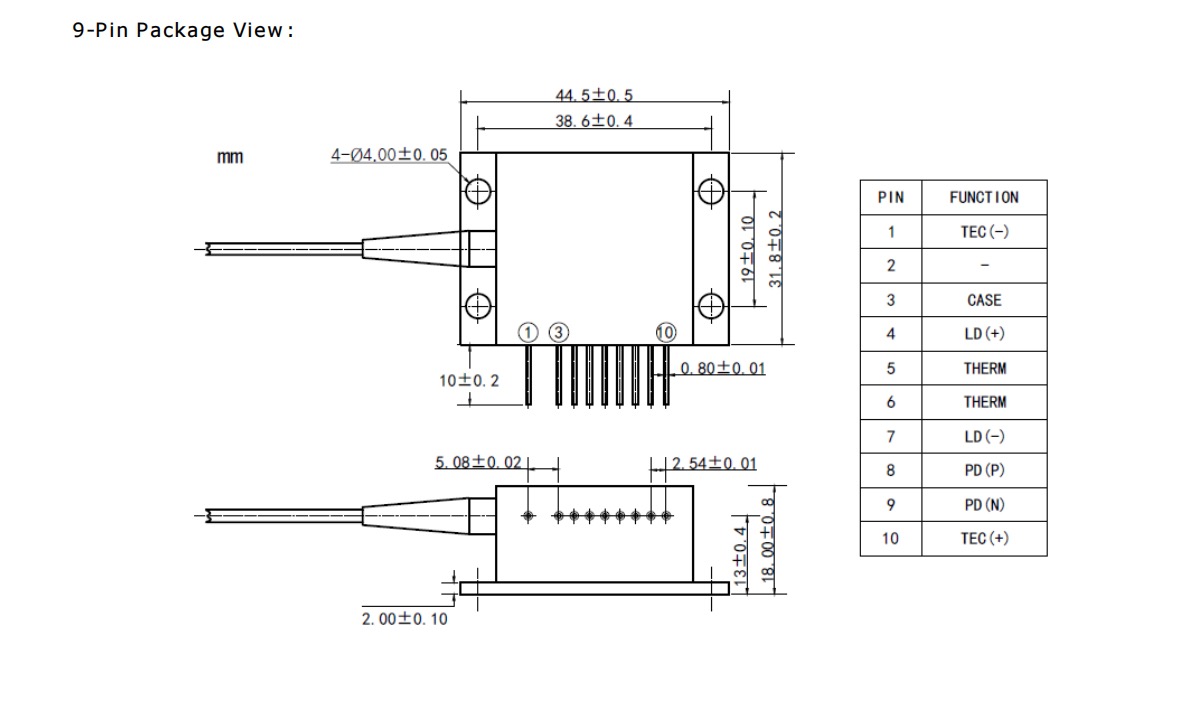

Product Drawing of 1064nm 8W 9-Pin with TEC Fiber Coupled Laser Diode Module

Product Application of 1064nm 8W 9-Pin with TEC Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application

1064nm-8w-9-pin-with-tec-fiber-coupled-laser-diode-module-937522.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
