1064nm 8W 105um MMF pigtailed diode laser module is designed with a 2-Pin package, ensuring a compact form. If offers optional functions such as the photodiode and TE cooler. The laser module’s fiber core diameter is 105um, and the numerical aperture is 0.22. For customer convenience, alternative fiber options include 50um, 200um and 400um multi-mode fibers. The 1064nm 8W 105um MMF pigtailed diode laser module boasts high coupling efficiency, superior performance, and a long lifespan. It’s designed for easy integration into customer’s devices. This kind of laser module is now extensively used across multiple industries and has earned a good reputation among customers. Wavespectrum Laser offers bespoke customization services for 1064nm 105um MMF pigtailed diode laser module, catering to the special requirements of each client.

Categories: 1064nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is pleased to offer 1064nm 8W 105um MMF pigtailed diode laser module, and we’re also equipped to supply various power versions of 1064nm 105um MMF pigtailed diode laser module to meet our customer’s diverse needs. Additionally, we provide an extensive selection of near wavelength laser products, such as: 820nm, 830nm, 840nm,850nm, 980nm, and 1064nm laser products.

Product Feature of 1064nm 8W 105um MMF Pigtailed Diode Laser Module Part Number: WSLX-1064-008-M-H2

Wavelength: 1064nm

Output Power: 8W

Package: 2-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Without PD

FP Laser Products

Product Parameter of 1064nm 8W 105um MMF Pigtailed Diode Laser Module

Specifications	WSLX-1064-008-M-H2
	Min	Type	Max
Center Wavelength@25℃	1064nm±20nm
Output Power	----	8W	----
Spectral Width (FWHM)	----	4nm	----
Recommended Case Temperature
Temperature Coefficient of Wavelength		0.4nm / °C
Threshold Current (Typ.)		0.5A	1.0A
Operating Current (Typ.)		11.0A	12.0A
Operating Voltage		1.7V	2.3V
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22
Fiber Length	>80cm
Connector Type	SMA905/ST/FC/SC

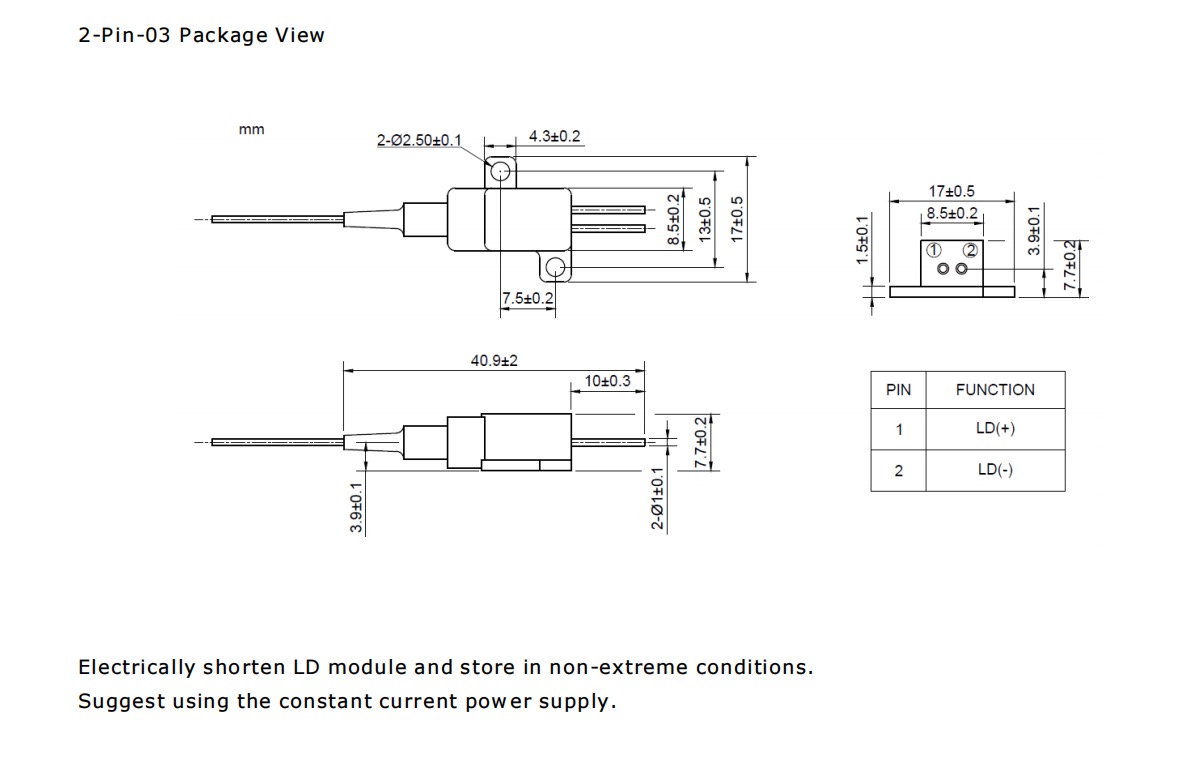

Package Style	2-Pin-03
