880nm2W with TEC 14-Pin Butterfly

The 880nm2W with TEC 14-Pin butterfly fiber coupled laser diode module is violet semiconductor laser product. It has a compact product size and includes a TE cooler, thermistor and photodiode, making it very convenient for customers to control the operating temperature and monitor the output power. The 880nm2W with TEC 14-Pin butterfly fiber coupled laser diode module is with high coupling efficiency and long lifetime, and it is very easy to integrate into the customer’s equipment. It is chosen by a large number of industrial and scientific users. The 14-Pin butterfly package laser modules are widely used in industrial processing, laser display, sensing, medical, consumer electronics, communications and scientific research. Wavespectrum Laser is capable of providing customized solutions for 880nm with TEC 14-Pin butterfly fiber coupled laser diode module, designed to fulfill the unique requirements of our clients.

Categories: 880nmMulti-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser takes pride in offering the 880nm2W with TEC 14-Pin butterfly fiber coupled laser diode module. Moreover, we are capable of providing customized power variants of the 880nm with TEC 14-Pin butterfly fiber coupled laser diode module as per client requirements. In addition, we offer a wide array of near wavelength laser products, including 940nm, 950nm, 976nm, 980nm, 1060nm,1064nm, 1510nm, and 1520nm lasers.

Product Feature of 880nm2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Part Number:WSLX-880-002-M-H14-T-PD

Wavelength: 880nm

Output Power:2W

Package: 14-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 880nm2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Specifications	WSLX-880-002-M-H14-T-PD
	Min.	Type	Max.
Center Wavelength@25℃	880nm±10nm
Spectral Width (FWHM)		3nm
Output Power	----	2W	----
Temperature Coefficient of Wavelength	0.3nm / °C
Threshold Current (Typ.)	----	0.5A	----
Operating Current (Typ.)	----	3.0A	----
Operating Voltage	----	2.0V	----
Recommended Case Temperature	25°C
TEC Max. Current	2A
TEC Max. Voltage	8V
Thermistor	10K
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22
Fiber Length	>80cm
Package Style	14-Pin-01
Connector Type	SMA905/ST/FC

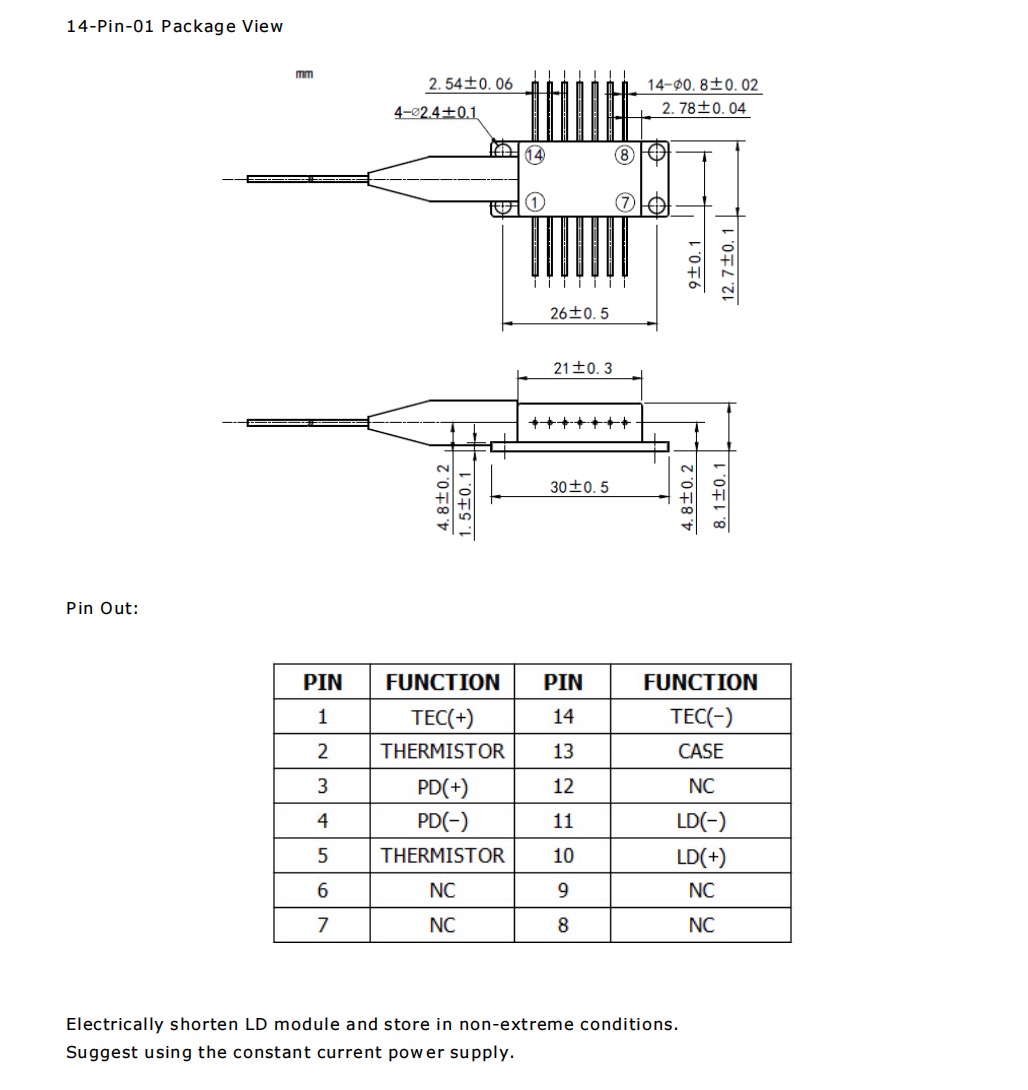

Product Drawing of 880nm2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Product Application of 880nm2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application

880nm2w-with-tec-14-pin-butterfly-fiber-coupled-laser-diode-module-283770.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
