880nm 2mW 9um

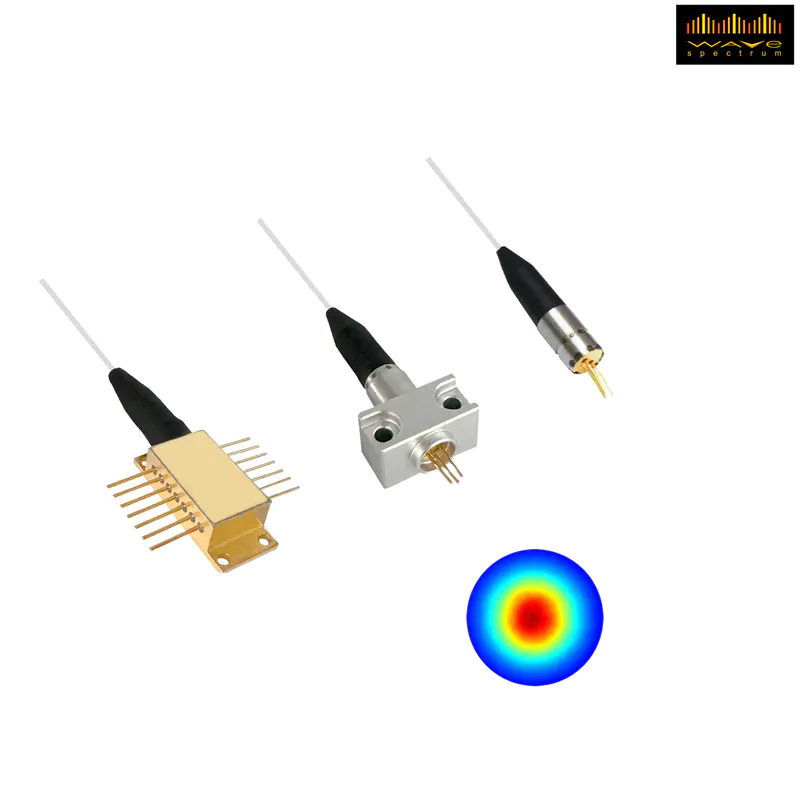

880nm 2mW 9um SM fiber coupled laser diode module is equipped with SMF-28 Fiber, features a coaxial package design, the product size is compact, and the photodiode and TE Cooler is optional. This 880nm 2mW 9um SM fiber coupled laser diode module is with high performance and long lifetime, we can also offer the B8 serious package version laser modules to customer, the B8 serious package laser module is with a small heat-sink, it will be more convenience for customers to fix and cool the laser module.
The 880nm 9um SM fiber coupled laser diode module can get the higher output power than the laser module with 5um single mode fiber, this laser product is suitable for customers who need higher power and do not have strict requirement for the beam quality.

Categories: 880nm Single Mode Fiber Coupled Laser Module, Single Mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser can offer the 880nm 2mW 9um SM fiber coupled laser diode module, this 880nm laser module is widely used in many fields, such as: Fiber Laser, Medical Laser, Laser Printing, Laser Cutting, Sensing, Display, Communication and Biological monitoring etc. For the near wavelength laser products, we can also offer the850nm,860nm, 940nm, 980nm, and 1060nm laser products to customers.

880nm 2mW 9um SM Fiber Coupled Laser Diode Module

880nm 2mW 9um SM fiber coupled laser diode module is equipped with SMF-28 Fiber, features a coaxial package design, the product size is compact, and the photodiode and TE Cooler is optional. This 880nm 2mW 9um SM fiber coupled laser diode module is with high performance and long lifetime, we can also offer the B8 serious package version laser modules to customer, the B8 serious package laser module is with a small heat-sink, it will be more convenience for customers to fix and cool the laser module.
The 880nm 9um SM fiber coupled laser diode module can get the higher output power than the laser module with 5um single mode fiber, this laser product is suitable for customers who need higher power and do not have strict requirement for the beam quality.

Download

Send Inquiry

分享 Facebook Twitter Pinterest

Product Feature of 880nm 2mW 9um SM Fiber Coupled Laser Diode Module

Wavelength: 880nm
Output Power: 2mW
Package: Coaxial
Fiber Core: 9um
Connector: FC/PC
Built-in PD
FP Laser Products

Product Parameter of 880nm 2mW 9um SM Fiber Coupled Laser Diode Module

Specifications	WSLP-880-002m-9-PD
	Min	Type	Max
Center Wavelength@25℃	870nm	880nm	890nm
Recommended work Temperature	25℃
Output Power	-	2mW	-
Fiber Type	SMF-28
Fiber Core	9um
Monitor Current	-	0.3mA	-
PD Reverse Voltage	-	-	30V
Fiber Connector	FC/SC/SMA905
Fiber Length	-	80cm	100cm
Threshold Current(Typ.)	-	9mA	16mA
Operating Current(Typ.)	-	20mA	25mA
Operating Voltage	-	2.0V	2.6V
Package Style	Coaxial or B82
Photodiodes	Built-in

Product Drawing of 880nm 2mW 9um SM Fiber Coupled Laser Diode Module

Coaxial Package View: （Part Number: WSLP-880-002m-9-PD）

B82 Package View: (Part Number: WSLP-880-002m-9-B-PD)

PIN Bottom View:

Electrically shorten LD module and store in non-extreme conditions.
Suggest using the constant current power supply.

Product Application of 880nm 2mW 9um SM Fiber Coupled Laser Diode Module

Medical Treatment
Biological Detection
Sensing Application

870nm-880nm-2mw-9um-fiber-coupled-laser-module-module-with-pd_663387.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
