830nm 3W 105um MMF Pigtailed

830nm 3W 105um MMF pigtailed diode laser module is designed with a 2-Pin package, ensuring a compact form. If offers optional functions such as the photodiode and TE cooler. The laser module’s fiber core diameter is 105um, and the numerical aperture is 0.22. For customer convenience, alternative fiber options include 50um, 200um and 400um multi-mode fibers. The 830nm 3W 105um MMF pigtailed diode laser module boasts high coupling efficiency, superior performance, and a long lifespan. It’s designed for easy integration into customer’s devices. This kind of laser module is now extensively used across multiple industries and has earned a good reputation among customers. Wavespectrum Laser offers bespoke customization services for 830nm 105um MMF pigtailed diode laser module, catering to the special requirements of each client.

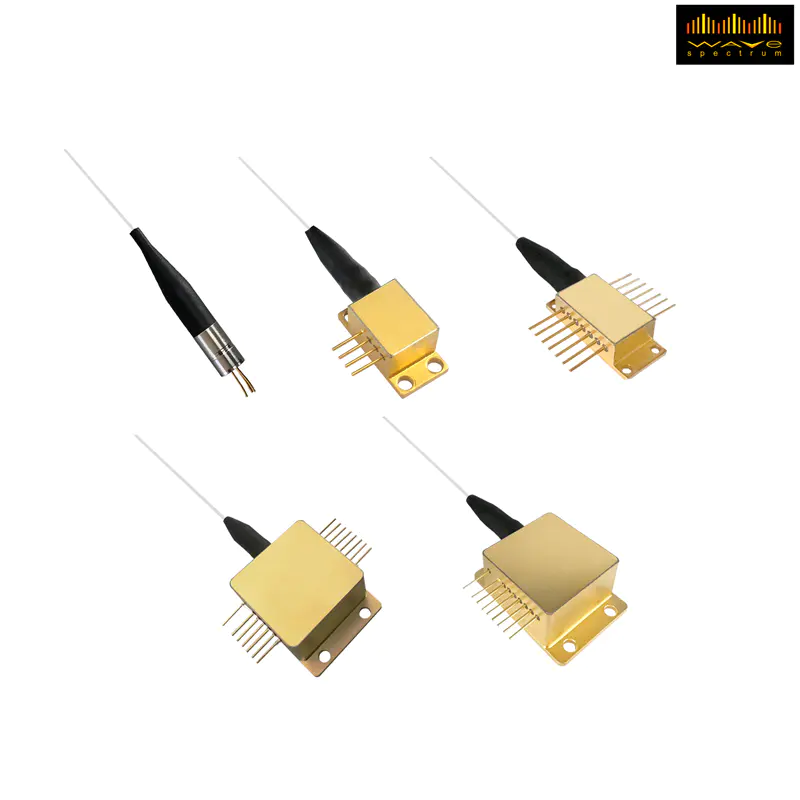

Categories: 830nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is pleased to offer 830nm 3W 105um MMF pigtailed diode laser module, and we’re also equipped to supply various power versions of 830nm 105um MMF pigtailed diode laser module to meet our customer’s diverse needs. Additionally, we provide an extensive selection of near wavelength laser products, such as: 780nm, 790nm, 808nm,850nm, 940nm, and 1064nm laser products.

Product Feature of 830nm 3W 105um MMF Pigtailed Diode Laser Module

Part Number: WSLX-830-003-M-H2

Wavelength: 830nm

Output Power: 3W

Package: 2-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Without PD

FP Laser Products

Product Parameter of 830nm 3W 105um MMF Pigtailed Diode Laser Module

Specifications	WSLX-830-003-M-H2
	Min	Type	Max
Center Wavelength@25℃	820nm	830nm	840nm
Output Power	----	3W	----
Spectral Width (FWHM)	----	3nm	----
Recommended Case Temperature	25°C
Temperature Coefficient of Wavelength	0.3nm / °C
Threshold Current (Typ.)	----	0.3A	0.6A
Operating Current (Typ.)	----	3.2A	3.5A
Operating Voltage	----	1.8V	2.2V
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22
Fiber Length	>80cm
Connector Type	SMA905/ST/FC/SC
Package Style	2-Pin-01

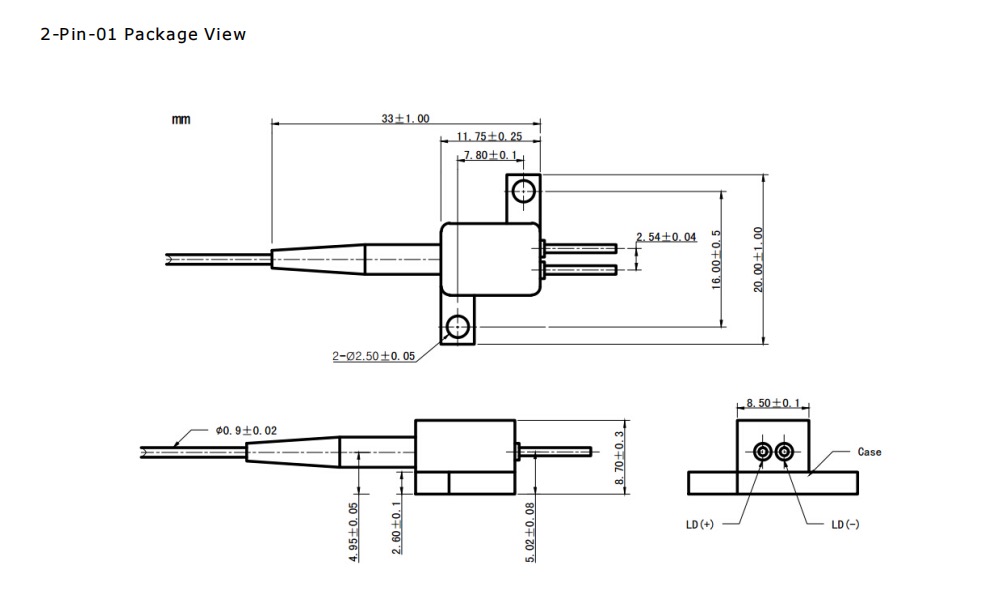

Product Drawing of 830nm 3W 105um MMF Pigtailed Diode Laser Module

Product Application of 830nm 3W 105um MMF Pigtailed Diode Laser Module

Medical Treatment

Biological Detection

Sensing Application

830nm-3w-105um-mmf-pigtailed-diode-laser-module-501158.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
