830nm 2W with TEC 14-Pin Butterfly

The 830nm 2W with TEC 14-Pin butterfly fiber coupled laser diode module is violet semiconductor laser product. It has a compact product size and includes a TE cooler, thermistor and photodiode, making it very convenient for customers to control the operating temperature and monitor the output power. The 830nm 2W with TEC 14-Pin butterfly fiber coupled laser diode module is with high coupling efficiency and long lifetime, and it is very easy to integrate into the customer’s equipment. It is chosen by a large number of industrial and scientific users. The 14-Pin butterfly package laser modules are widely used in industrial processing, laser display, sensing, medical, consumer electronics, communications and scientific research. Wavespectrum Laser is capable of providing customized solutions for 830nm with TEC 14-Pin butterfly fiber coupled laser diode module, designed to fulfill the unique requirements of our clients.

Categories: 830nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser takes pride in offering the 830nm 2W with TEC 14-Pin butterfly fiber coupled laser diode module. Moreover, we are capable of providing customized power variants of the 830nm with TEC 14-Pin butterfly fiber coupled laser diode module as per client requirements. In addition, we offer a wide array of near wavelength laser products, including 808nm, 820nm, 830nm, 850nm, 915nm, 940nm, 980nm,1064nm, 1310nm and 1550nm lasers.

Product Feature of 830nm 2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Part Number: WSLX-830-002-M-H14-T-PD

Wavelength: 830nm

Output Power: 2W

Package: 14-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 830nm 2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Specifications	WSLX-830-002-M-H14-T-PD
	Min	Type	Max
Center Wavelength@25℃	820nm	830nm	840nm
Spectral Width (FWHM)		3nm
Output Power		2W
Temperature Coefficient of Wavelength	0.3nm / °C
Threshold Current (Typ.)	0.3A
Operating Current (Typ.)	2.0V
Operating Voltage	2.0V
Recommended Case Temperature	25°C
TEC Max. Current	2A
TEC Max. Voltage	8V
Thermistor	10K
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22
Package	14-Pin-01
Fiber Length	>80cm
Connector Type	FC (SMA905 Optional)

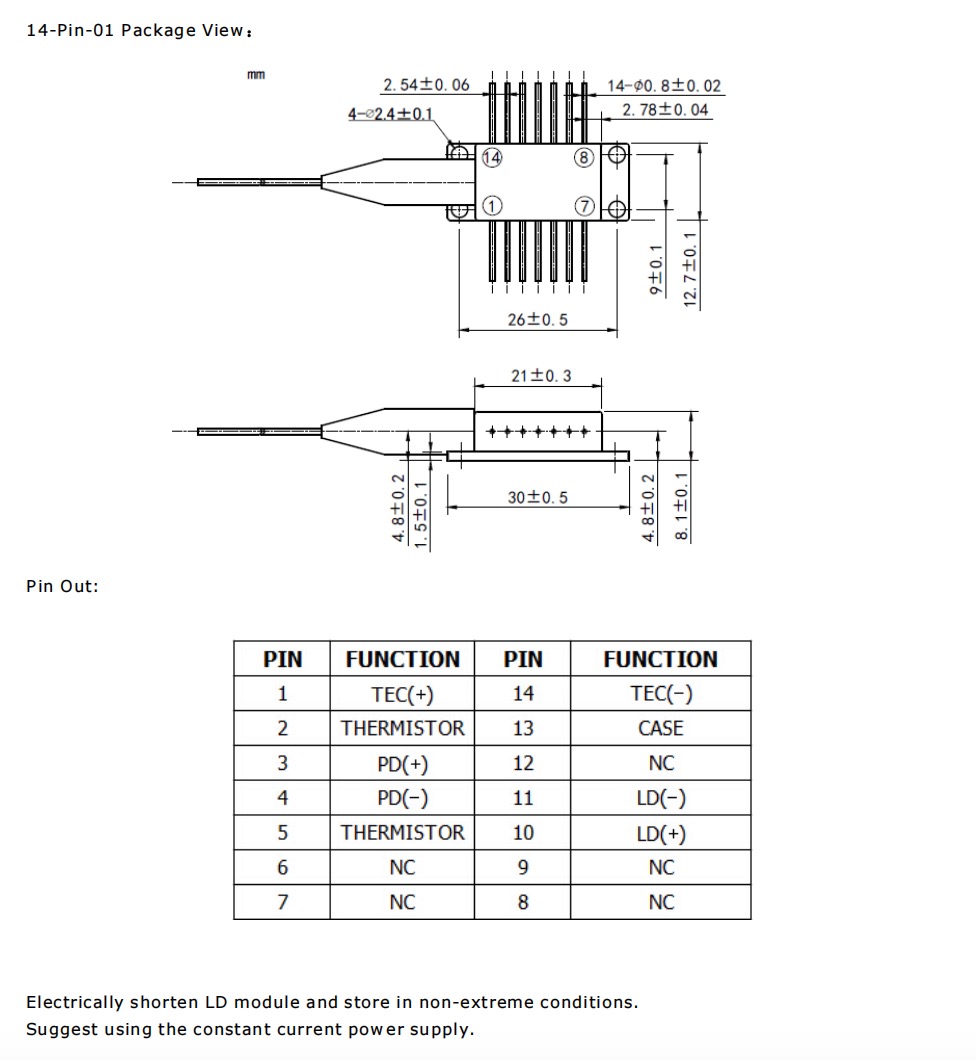

Product Drawing of 830nm 2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Product Application of 830nm 2W with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application

830nm-2w-with-tec-14-pin-butterfly-fiber-coupled-laser-diode-module-24682.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
