Wavespectrum Laser is dedicated to offering 820nm 30mW polarization maintaining pigtailed laser diode. We also address a wide range of requirements by providing different power options for the 820nm polarization maintaining pigtailed laser diode. Moreover, for customers seeking improved performance, we have laser modules with higher PER values available. Our product portfolio extends to include an extensive array of near-wavelength PM laser modules. These modules are available at wavelengths of 808nm, 810nm,820nm, 830nm, 880nm, 904nm, 980nm, and 1064nm, thereby offering our clients a comprehensive selection to meet their specific requirements.
Product Feature of 820nm 30mW Polarization Maintaining Pigtailed Laser Diode
Wavelength: 820nm
Output Power: 30mW
Package: Coaxial
Fiber Type: PM Fiber
Fiber Core:5um
Connector: FC/APC
PER: >13dB
Built-in PD
FP Laser Products
Product Parameter of 820nm 30mW Polarization Maintaining Pigtailed Laser Diode
| Specifications | WSLP-820-030m-PM-PD | ||
| Min | Type | Max | |
| Center Wavelength@25℃ | 820nm±10nm | ||
| Recommended work Temperature | 25℃ | ||
| Output Power | - | 30mW | - |
| Fiber Type | Polarization Maintaining Fiber | ||
| Fiber Core | 5um | ||
| Polarization Extinction Ratio | 13dB | 15dB | - |
| Monitor Current | - | 0.3mA | - |
| Fiber Connector | FC/APC | ||
| Fiber Length | >80cm | ||
| Threshold Current(Typ.) | - | 30mA | 55mA |
| Operating Current(Typ.) | - | 170mA | 190mA |
| Operating Voltage | - | 1.8V | 2.5V |
| Package Style | Coaxial or B82 | ||
| High Polarization Extinction Ratio (PER) Version Laser Module is also available, please contact us. | |||
Product Drawing of 820nm 30mW Polarization Maintaining Pigtailed Laser Diode

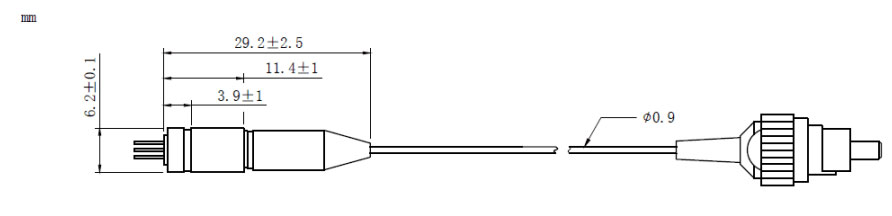

Coaxial Package View: (Part Number: WSLP-820-030m-PM-PD)

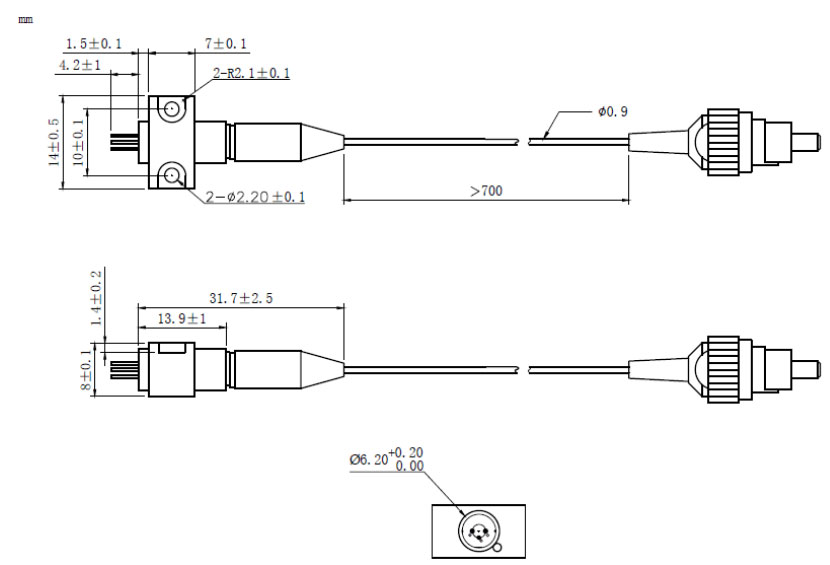

B82 Package View: (Part Number: WSLP-820-030m-PM-B-PD)

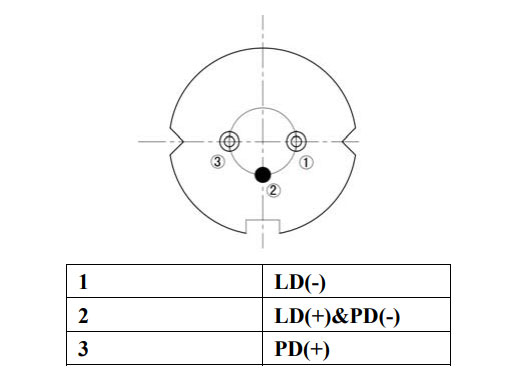

PIN Bottom View:

Electrically shorten LD module and store in non-extreme conditions.
Suggest using the constant current power supply.
Product Application of 820nm 30mW Polarization Maintaining Pigtailed Laser Diode
Medical Treatment
Biological Detection
Sensing Application
