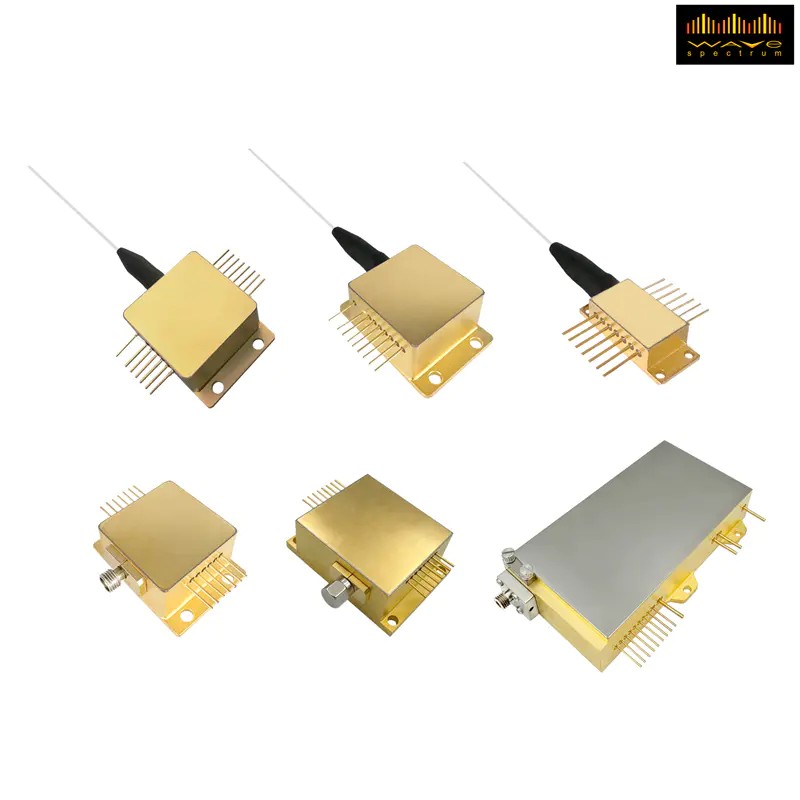

808nm 7W 15-Pin with 650nm Red Aiming Beam

The 808nm 7W 15-Pin Fiber Coupled Laser Diode Module with 650nm Red Aiming Beam is equipped with 1pc 200um multi-mode Fiber, it is included a TE cooler, a thermistor and a photodiode for enhanced control and monitoring. The module offers the flexibility of choosing FC, SMA905, or ST connectors. This 808nm 7W 15-Pin fiber coupled laser diode module is with high performance and long lifetime, this laser module integrates the 650nm red aiming beam, it is very convenience for customers to control the laser beam. Moreover, we can also provide fiber detachable laser modules to cater to specific customer needs.
Wavespectrum Laser can also customize other power version 808nm 15-Pin fiber coupled laser diode modules to meet specific customer requirements.

Categories: 808nm Medical Laser Module, Medical Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is dedicated to providing 808nm 7W 15-Pin fiber coupled laser diode modules, which come with an integrated 650nm red aiming Beam. We also offer a diverse selection of power configurations for 808nm 15-pin multi-mode fiber coupled laser diode modules to meet the varied needs of customers. Moreover, we also supply near-wavelength laser products, including 635nm, 660nm, 755nm, 785nm, 830nm, 850nm, 880nm and 1270nm laser products.

Product Feature of 808nm 7W 15-Pin Fiber Coupled Laser Diode Module with 650nm Red Aiming Beam

Wavelength: 808nm
Output Power:7W
Package: 15-Pin
Fiber Core: 200um
Connector: FC/PC
With 650nm Red Aiming Beam
Built-in TE Cooler
Built-in PD
FP Laser Products

Product Parameter of 808nm 7W 15-Pin Fiber Coupled Laser Diode Module with 650nm Red Aiming Beam

Specifications	WSLX-808-007-200M-H15-T-PD-A
	Min.	Type	Max.
Center Wavelength@25℃	±3nm	808nm	±10nm
Spectral Width(FWHM)		3nm
Output Power	-----	7W	----
Temperature Coefficient of Wavelength		0.3nm /9C
Threshold Current(Typ.)		1.2A
Operating Current(Typ.)		10.0A
Operating Voltage		2.2V
Recommended Case Temperature	25°C
TEC Max.Current	6A
TEC Max.Voltage	9.8V
Thermistor	10K
Fiber Core Diameter	200um(400um Optional)
Fiber Length	>80cm
Connector Type	SMA905/ST/FC
Package Style	15-Pin
Aiming Beam	>2mW@638nm

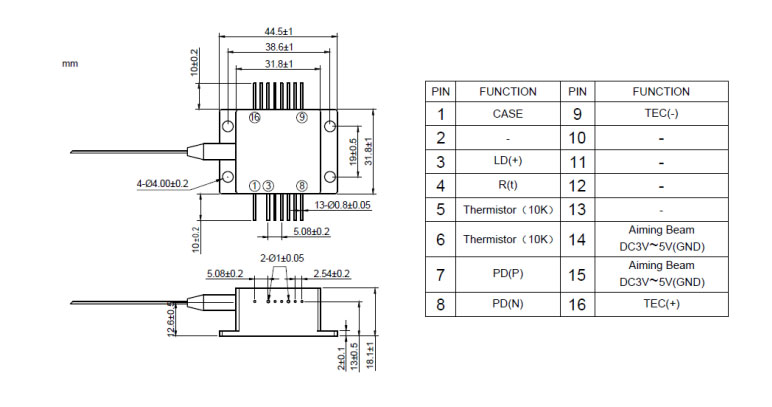

Product Drawing of 808nm 7W 15-Pin Fiber Coupled Laser Diode Module with 650nm Red Aiming Beam

15-Pin Package View:

Product Application of 808nm 7W 15-Pin Fiber Coupled Laser Diode Module with 650nm Red Aiming Beam

Medical Treatment
Biological Detection
Sensing Application

808nm-7w-15-pin-fiber-coupled-laser-diode-module-with-650nm-red-aiming-beam_377248.pdf
