808nm 300mW 105um MMF Pigtailed

808nm 300mW 105um MMF pigtailed diode laser module is designed with a coaxial package, ensuring a compact form. If offers optional functions such as the photodiode and TE cooler. The laser module’s fiber core diameter is 105um, and the numerical aperture is 0.22. For customer convenience, alternative fiber options include 50um, 200um and 400um multi-mode fibers. The 808nm 300mW 105um MMF pigtailed diode laser module boasts high coupling efficiency, superior performance, and a long lifespan. It’s designed for easy integration into customer’s devices. This kind of laser module is now extensively used across multiple industries and has earned a good reputation among customers. Wavespectrum Laser offers bespoke customization services for 808nm 105um MMF pigtailed diode laser module, catering to the special requirements of each client.

Categories: 808nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is pleased to offer 808nm 300mW 105um MMF pigtailed diode laser module, and we’re also equipped to supply various power versions of 808nm 105um MMF pigtailed diode laser module to meet our customer’s diverse needs. Additionally, we provide an extensive selection of near wavelength laser products, such as: 808nm, 830nm, 850nm,860nm, 910nm, and 940nm laser products.

Product Feature of 808nm 300mW 105um MMF Pigtailed Diode Laser Module

Part Number: WSLP-808-300m-M-PD

Wavelength: 808nm

Output Power: 300mW

Package: Coaxial

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in PD

FP Laser Products

Product Parameter of 808nm 300mW 105um MMF Pigtailed Diode Laser Module

Specifications	WSLP-808-300m-M-PD
	Min	Type	Max
Center Wavelength@25℃	808nm±10nm
Spectral Width (FWHM)	----	2.0nm	----
Output Power	250mW	300mW	----
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22
Monitor Current	----	0.3mA	----
PD Reverse Voltage	----	----	30V
Fiber Connector	FC/SC/SMA905
Fiber Length	>80cm
Threshold Current (Typ.)	----	65mA	100mA
Operating Current (Typ.)	----	550mA	580mA
Operating Voltage	----	1.9V	2.4V
Package Style	Coaxial or B82
Recommend Operating Temperature	25℃

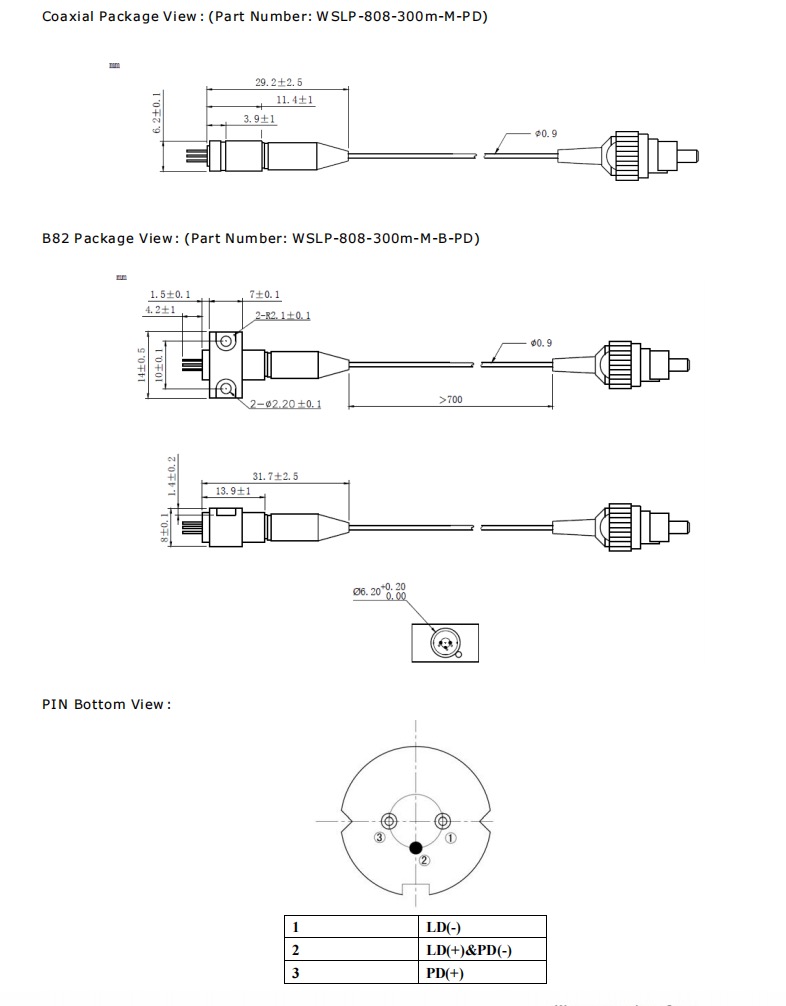

Product Drawing of 808nm 300mW 105um MMF Pigtailed Diode Laser Module

Product Application of 808nm 300mW 105um MMF Pigtailed Diode Laser Module

Medical Treatment

Biological Detection

Sensing Application

808nm-300mw-105um-mmf-pigtailed-diode-laser-module-870810.pdf
