808nm 2W 14-Pin Butterfly 105um Pigtailed

808nm 2W 14-Pin Butterfly 105um Pigtailed

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is delighted to introduce our 808nm 2W 14-Pin butterfly 105um fiber pigtailed diode laser module. We are also well-prepared to deliver various power configurations of the 808nm 14-Pin butterfly 105um fiber pigtailed diode laser module, ensuring we meet the diverse needs of our customers. In addition, we offer a comprehensive portfolio of near wavelength laser products, which encompasses 645nm, 665nm, 680nm, 690nm, 705nm, 780nm, 808nm, 820nm,825nm, and 830nm laser options.

Categories: ,

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is delighted to introduce our 808nm 2W 14-Pin butterfly 105um fiber pigtailed diode laser module. We are also well-prepared to deliver various power configurations of the 808nm 14-Pin butterfly 105um fiber pigtailed diode laser module, ensuring we meet the diverse needs of our customers. In addition, we offer a comprehensive portfolio of near wavelength laser products, which encompasses 645nm, 665nm, 680nm, 690nm, 705nm, 780nm, 808nm, 820nm,825nm, and 830nm laser options.

Product Feature of 808nm 2W 14-Pin butterfly 105um fiber pigtailed diode laser module

Part Number: WSLX-808-002-M-H14-T-PD

Wavelength: 808nm

Output Power: 2W

Package: 14-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 808nm 2W 14-Pin butterfly 105um fiber pigtailed diode laser module

Specifications WSLX-808-002-M-H14-T-PD
Min Type Max
Center Wavelength@25℃ ±5nm 808nm ±10nm
Output Power 2W
Spectral Width (FWHM) 3nm
Recommended Operating Temperature 25℃
Temperature Coefficient of Wavelength 0.3nm / °C
Threshold Current (Typ.) 0.3A
Operating Current (Typ.) 3.0A
Operating Voltage 2.0V
TEC Max Current 2A
TEC Max Voltage 8V
Thermistor 10K
Fiber Core Diameter 105um
Fiber Numerical Aperture 0.22
Fiber Connector FC/SMA905
Fiber Length >80cm
Package Style 14-Pin-01

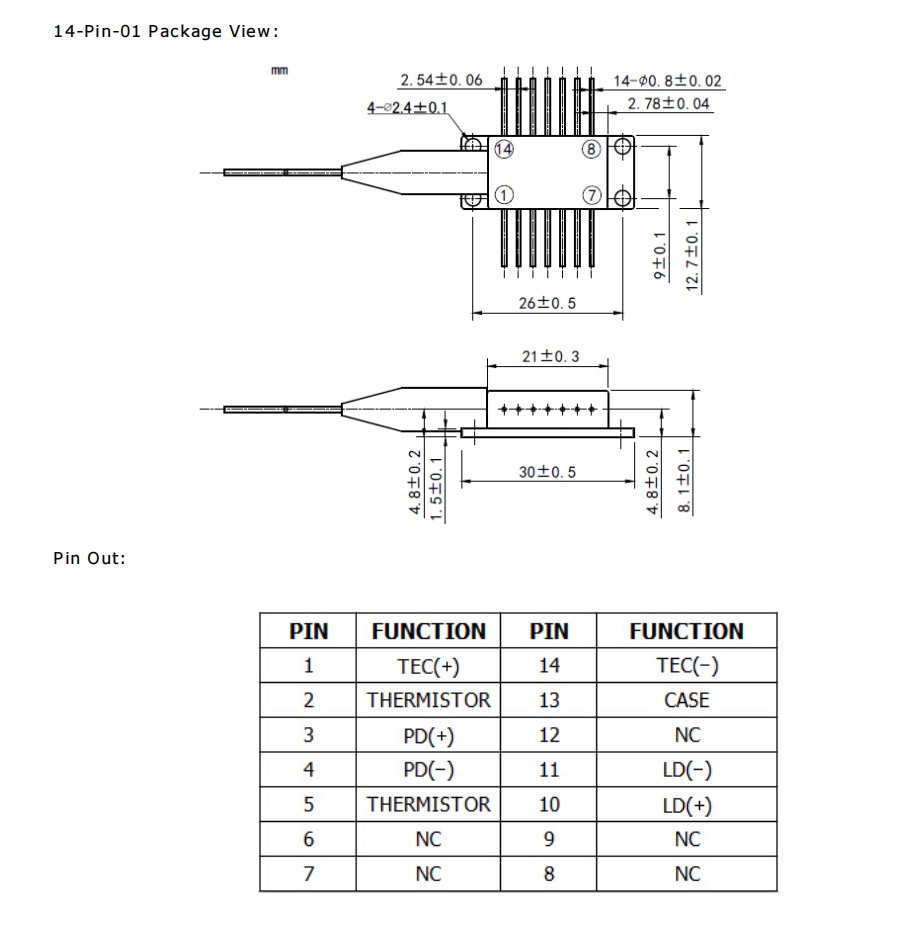

Product Drawing of 808nm 2W 14-Pin butterfly 105um fiber pigtailed diode laser module

Product Application of 808nm 2W 14-Pin butterfly 105um fiber pigtailed diode laser module

Medical Treatment

Biological Detection

Sensing Application

808nm-2w-14-pin-butterfly-105um-fiber-pigtailed-diode-laser-module-48306.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
