Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser is pleased to offer 808nm 10W 105um MMF pigtailed diode laser module, and we’re also equipped to supply various power versions of 808nm 105um MMF pigtailed diode laser module to meet our customer’s diverse needs. Additionally, we provide an extensive selection of near wavelength laser products, such as: 830nm, 840nm, 850nm,860nm, 940nm, and 980nm laser products.
Product Feature of 808nm 10W 105um MMF Pigtailed Diode Laser Module
Part Number: WSLX-808-010-200M-H2
Wavelength: 808nm
Output Power: 10W
Package: 2-Pin
Fiber Core: 105um
Connector: FC/SC/SMA905/ST
Without PD
FP Laser Products
Product Parameter of 808nm 10W 105um MMF Pigtailed Diode Laser Module
| Specifications | WSLX-808-010-200M-H2 | ||
| Min | Type | Max | |
| Center Wavelength@25℃ | 808nm±10nm | ||
| Spectral Width (FWHM) | ---- | 3nm | ---- |
| Output Power | ---- | 10W | ---- |
| Temperature Coefficient of Wavelength | 0.3nm / °C | ||
| Threshold Current (Typ.) | ---- | 1.5A | 2.5A |
| Operating Current (Typ.) | ---- | 12.0A | 12.5A |
| Operating Voltage | ---- | 1.9V | 2.2V |
| Recommended Case Temperature | 25°C | ||
| Fiber Core Diameter | 200um | ||
| Fiber Numerical Aperture | 0.22 | ||
| Fiber Length | >80cm | ||
| Connector Type | SMA905/ST/FC | ||
| Package Style | 2-Pin-03 | ||

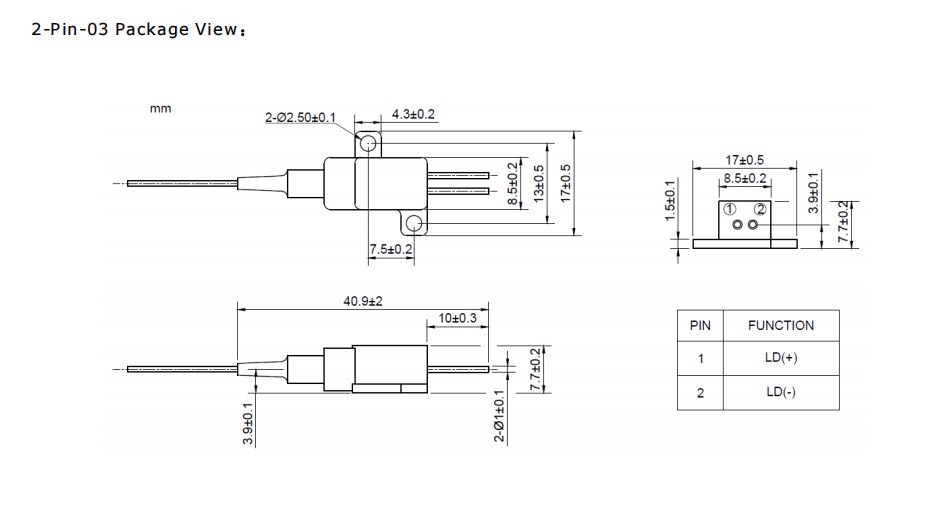

Product Drawing of 808nm 10W 105um MMF Pigtailed Diode Laser Module
Product Application of 808nm 10W 105um MMF Pigtailed Diode Laser Module
Medical Treatment
Biological Detection
Sensing Application
For more questions visit our help center.
Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.
Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.
Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.
We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
