650nm 20mW 9um

650nm 20mW 9um SM fiber coupled laser diode module is equipped with SMF-28 Fiber, features a coaxial package design, the product size is compact, and the photodiode and TE Cooler is optional. This 650nm 20mW 9um SM fiber coupled laser diode module is with high performance and long lifetime, we can also offer the B8 serious package version laser modules to customer, the B8 serious package laser module is with a small heat-sink, it will be more convenience for customers to fix and cool the laser module.
The 650nm 9um SM fiber coupled laser diode module can get the higher output power than the laser module with 4um single mode fiber, this laser product is suitable for customers who need higher power and do not have strict requirement for the beam quality.

Categories: 650nm Single Mode Fiber Coupled Laser Module, Single Mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser can offer the 650nm 20mW 9um SM fiber coupled laser diode module, this 650nm laser module is widely used in many fields, such as: Fiber Laser, Medical Laser, Laser Printing, Laser Cutting, Sensing, Display, Communication and Biological monitoring etc. For the near wavelength laser products, we can also offer the 405nm, 445nm, 488nm, 520nm, 635nm, 658nm, 660nm, 785nm and 808nm laser products to customers.

Product Feature of 650nm 20mW 9um SM Fiber Coupled Laser Diode Module

Wavelength: 650nm
Output Power: 20mW
Package: Coaxial
Fiber Core: 9um
Connector: FC/PC
Without PD
FP Laser Products

Product Parameter of 650nm 20mW 9um SM Fiber Coupled Laser Diode Module

Specifications	WSLP-650-020m-9
	Min	Type	Max
Center Wavelength@25℃	±5nm	658nm	±10nm
Spectral Width (FWHM)	-	2.0nm	-
Output Power	-	20mW	-
Fiber Type	SMF-28
Fiber Core	9um
Recommended work Temperature	25℃
Fiber Connector	FC/SC/SMA905
Fiber Length	-	80cm	100cm
Threshold Current	-	45mA	70mA
Operating Current	-	150mA	170mA
Operating Voltage	-	2.6V	3.5V
Package Style	Coaxial or B8

Product Drawing of 650nm 20mW 9um SM Fiber Coupled Laser Diode Module

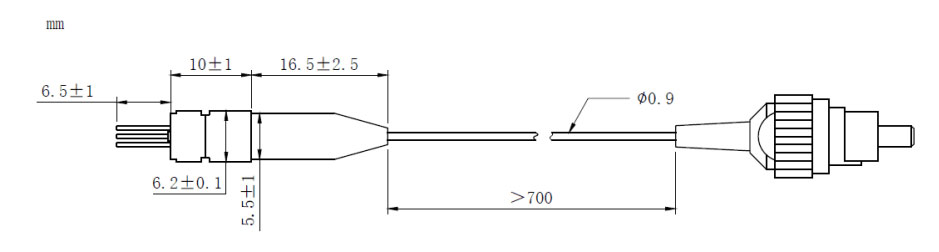

Coaxial Package View: (Part Number: WSLP-650-020m-9)

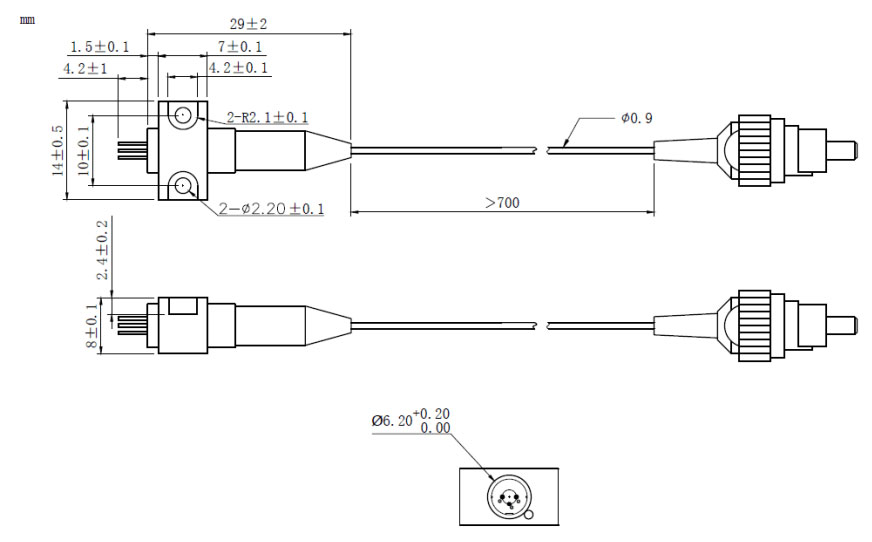

B8 Package View: (Part number: WSLP-650-020m-9-B)

PIN Bottom View:

Electrically shorten LD module and store in non-extreme conditions.
Suggest using the constant current power supply.

Product Application of 650nm 20mW 9um SM Fiber Coupled Laser Diode Module

Medical Treatment
Biological Detection
Sensing Application

650nm-658nm-660nm-20mw-9um-fiber-coupled-laser-module-module_312863.pdf
