635nm400mW 105um

635nm400mW 105um fiber coupled laser diode module is with B82 package, the product size is compact, the photodiode and the TE Cooler is optional. The fiber core of this laser module is 105um, the fiber numerical aperture is 0.22. If customers want to change the fiber, it is also ok, the 50um, 200um and 400um multi-mode fiber is also available. This 635nm400mW 105um fiber coupled laser diode module is with high coupling efficiency, high performance and long lifetime, and it is easy for customers to integrate into their devices, now this type of laser module is widely used in a variety of fields, widely praised by customers. Wavespectrum Laser can also customize the other power version 635nm 105um fiber coupled laser diode modules according to the customer’s requirement.

Categories: 635nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 635nm400mW 105um fiber coupled laser diode module, and we can also supply the different power version 635nm 105um fiber coupled laser diode module to customers. For the near wavelength laser products, we can also offer the 465nm, 505nm, 520nm, 532nm, and 630nm laser products to customers.

Product Feature of 635nm400mW 105um Fiber Coupled Laser Diode Module

Part Number: WSLP-635-400m-M-B

Wavelength: 635nm

Output Power:400mW

Package: B82

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Without PD

FP Laser Products

Product Parameter of 635nm400mW 105um Fiber Coupled Laser Diode Module

Specifications	WSLP-635-400m-M-B
	Min	Type	Max
Center Wavelength@25℃	630nm	638nm	645nm
Spectral Width (FWHM)	----	2.0nm	----
Output Power	----	400mW	----
Fiber Core	105um
Numerical aperture	0.22
Fiber Connector	FC/SC/SMA905
Fiber Length	>80cm
Threshold Current (Typ.)	----	220mA	300mA
Operating Current (Typ.)	----	870mA	950mA
Operating Voltage	----	2.4V	3.0V
Recommended Operating Temperature	25℃
Package Style	B82

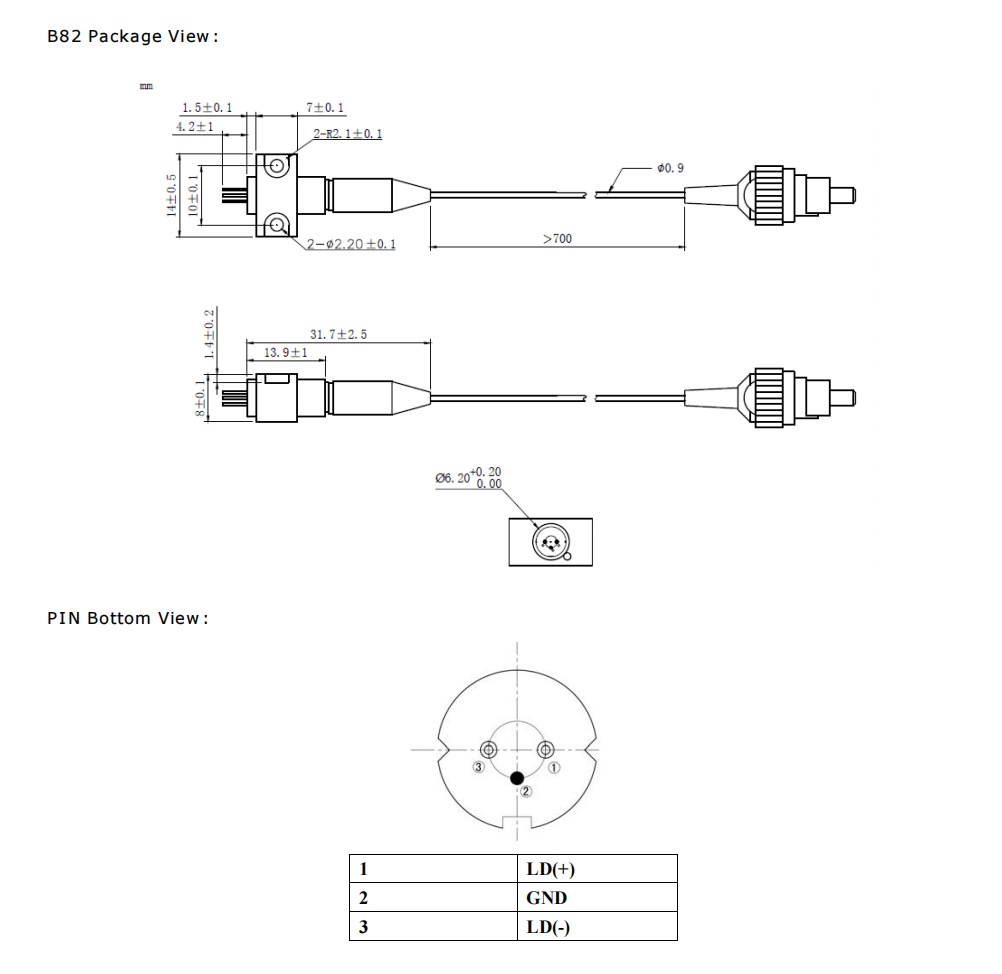

Product Drawing of 635nm400mW 105um Fiber Coupled Laser Diode Module

Product Application of 635nm400mW 105um Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application

635nm400mw-105um-fiber-coupled-laser-diode-module-495357.pdf
