635nm 800mW 50um LD

635nm 800mW 50um multi-mode fiber coupled LD module is engineered with a B13 package, guaranteeing a space-efficient design. If offers additional functionalities such as a photodiode and a TE cooler. The fiber core of this laser module is 50um, the fiber numerical aperture is 0.12, to enhance customer flexibility, alternative fiber options included 105um, 200um and 400um multi-mode fiber. The 635nm 800mW 50um multi-mode fiber coupled LD module is distinguished by its high coupling efficiency, exceptional performance, and extended longevity. It facilitates straightforward integration into customer’s equipment. Many such laser modules have gained broad adoption across diverse sectors and has been widely acclaimed by customers for its great reliability. Wavespectrum Laser provides tailored customization for 635nm 50um multi-mode fiber coupled LD module, designed to meet each client’s special needs.

Categories: 635nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is excited to present our 635nm 800mW 50um multi-mode fiber coupled LD module. Furthermore, we are capable of providing customized power variants of the 635nm 50um multi-mode fiber coupled LD module as per client requirements. Moreover, we offer a wide array of near wavelength laser products, including 375nm, 395nm, 400nm, 420nm, 435nm, 445nm, 455nm, 465nm, 488nm and 505nm lasers.

Product Feature of 635nm 800mW 50um Multi-mode Fiber Coupled LD Module

Part Number: WSLP-635-800m-50M

Wavelength: 635nm

Output Power: 800mW

Package: B13

Fiber Core: 50um

Connector: FC/SC/SMA905/ST

Without PD

FP Laser Products

Product Parameter of 635nm 800mW 50um Multi-mode Fiber Coupled LD Module

Specifications	WSLP-635-800m-50M
	Min	Type	Max
Center Wavelength@25℃	630nm	638nm	645nm
Spectral Width (FWHM)	----	2.0nm	----
Temperature Coefficient of Wavelength	----	0.2nm / °C	----
Output Power	0.7W	0.8W	----
Recommended Case Temperature	25°C
Threshold Current (Typ.)	----	0.3A	----
Operating Current (Typ.)	----	1.5A	----
Operating Voltage	----	2.4V	----
Fiber Core Diameter	50um
N.A.	0.22
Fiber Length	>80cm
Connector Type	FC(SMA905 Optional)
Package Style	B13 Package

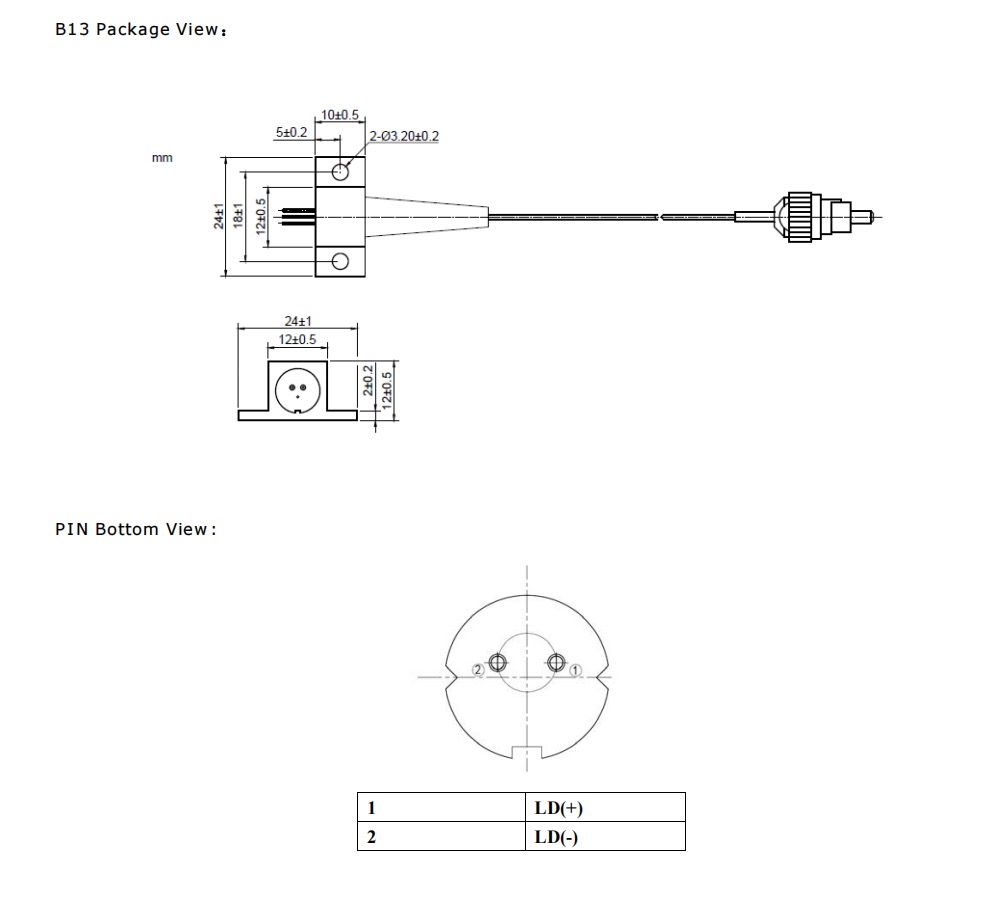

Product Drawing of 635nm 800mW 50um Multi-mode Fiber Coupled LD Module

Product Application of 635nm 800mW 50um Multi-mode Fiber Coupled LD Module

Medical Treatment

Biological Detection

Sensing Application

635nm-800mw-50um-multi-mode-fiber-coupled-ld-module-55038.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
