635nm 400mW with TEC 14-Pin Butterfly

The 635nm 400mW with TEC 14-Pin butterfly fiber coupled laser diode module is violet semiconductor laser product. It has a compact product size and includes a TE cooler, thermistor and photodiode, making it very convenient for customers to control the operating temperature and monitor the output power. The 635nm 400mW with TEC 14-Pin butterfly fiber coupled laser diode module is with high coupling efficiency and long lifetime, and it is very easy to integrate into the customer’s equipment. It is chosen by a large number of industrial and scientific users. The 14-Pin butterfly package laser modules are widely used in industrial processing, laser display, sensing, medical, consumer electronics, communications and scientific research. Wavespectrum Laser is capable of providing customized solutions for 635nm with TEC 14-Pin butterfly fiber coupled laser diode module, designed to fulfill the unique requirements of our clients.

Categories: 635nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser takes pride in offering the 635nm 400mW with TEC 14-Pin butterfly fiber coupled laser diode module. Moreover, we are capable of providing customized power variants of the 635nm with TEC 14-Pin butterfly fiber coupled laser diode module as per client requirements. In addition, we offer a wide array of near wavelength laser products, including 375nm, 395nm, 400nm, 420nm, 435nm, 455nm, 465nm, 488nm, 495nm and 505nm lasers.

Product Feature of 635nm 400mW with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Part Number: WSLX-635-400m-M-H14-T-PD

Wavelength: 635nm

Output Power: 400mW

Package: 14-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 635nm 400mW with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Specifications	WSLX-635-400m-M-H14-T-PD
	Min	Type	Max
Center Wavelength@25℃	638nm±10nm
Output Power		400mW
Spectral Width (FWHM)		2nm
Recommended Operating Temperature	25℃
Temperature Coefficient of Wavelength	0.2nm / °C
Threshold Current (Typ.)		160mA	210mA
Operating Current (Typ.)		700mA	750mA
Operating Voltage		2.4V	2.8V
TEC Max Current	2A
TEC Max Voltage	8V
Thermistor	10K
Fiber Core Diameter	105um
Fiber Numerical Aperture	0.22
Fiber Connector	FC/SMA905
Fiber Length	>80cm
Package Style	14-Pin

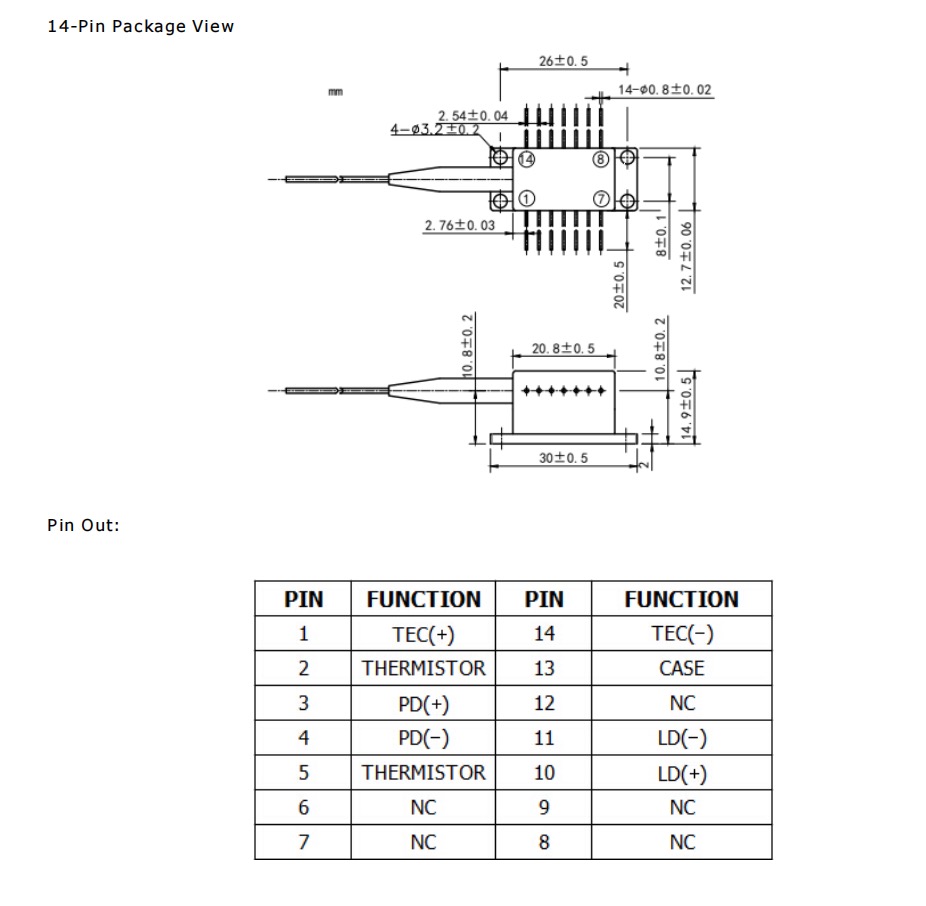

Product Drawing of 635nm 400mW with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Product Application of 635nm 400mW with TEC 14-Pin Butterfly Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application

635nm-400mw-with-tec-14-pin-butterfly-fiber-coupled-laser-diode-module-755576.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
