525nm 800mW 9-Pin with TEC

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 525nm 800mW 9-Pin with TEC fiber coupled laser diode module, and we can also supply the different power version 525nm 9-Pin with TEC fiber coupled laser diode module to customers. For the near wavelength laser products, we can also offer the 375nm, 395nm, 400nm, 420nm, 435nm, 455nm, 465nm, 505nm and 520nm laser products to customers.

Categories: ,

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 525nm 800mW 9-Pin with TEC fiber coupled laser diode module, and we can also supply the different power version 525nm 9-Pin with TEC fiber coupled laser diode module to customers. For the near wavelength laser products, we can also offer the 375nm, 395nm, 400nm, 420nm, 435nm, 455nm, 465nm, 505nm and 520nm laser products to customers.

Product Feature of 525nm 800mW 9-Pin with TEC Fiber Coupled Laser Diode Module

Part Number: WSLX-525-800m-M-H9-T-PD

Wavelength: 525nm

Output Power: 800mW

Package: 9-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 525nm 800mW 9-Pin with TEC Fiber Coupled Laser Diode Module

SpecificationsWSLX-525-800m-M-H9-T-PD
Min.TypeMax.
Center Wavelength@25℃525nm±10nm
Spectral Width (FWHM)----2nm----
Output Power700mW800mW----
Recommended Operating Temperature25 °C
Threshold Current (Typ.)----0.2A0.5A
Operating Current (Typ.)----1.6A1.8A
Operating Voltage5.0V6.0V
TEC Max Current6A
TEC Max Voltage9.8V
Thermistor10K
Fiber Core105um (50um, 200um Optional)
Fiber Length6A
Connector TypeSMA905/FC
Package9-Pin

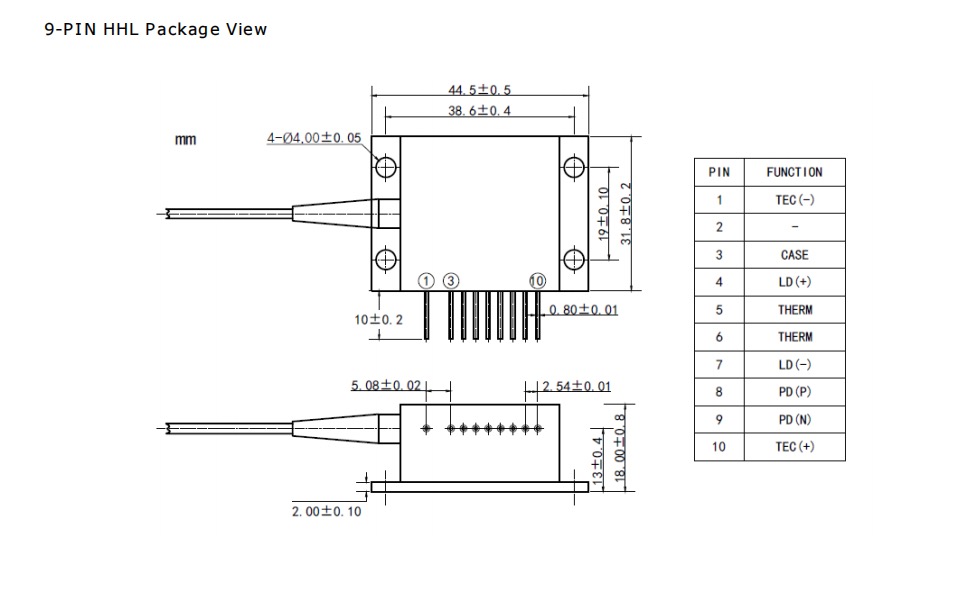

Product Drawing of 525nm 800mW 9-Pin with TEC Fiber Coupled Laser Diode Module

Product Application of 525nm 800mW 9-Pin with TEC Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application

525nm-800mw-9-pin-with-tec-fiber-coupled-laser-diode-module-59823.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
