520nm 20mW Polarization Maintaining

520nm 20mW polarization maintaining fiber coupled laser diode module is with 3um PM Fiber, the PER is ＞13dB, and the higher PER value version laser module is optional, the PM laser module can get the Gaussian Beam, it is with coaxial package, the product size is compact, it is the TE Cooler is optional. This 520nm 20mW polarization maintaining fiber coupled laser diode module is with high performance and long lifetime, we can also offer the B8 series package version laser modules to customer, the B8 series package laser module is with a small heat-sink, it will be more convenience for customers to fix and cool the laser module.
Wavespectrum Laser can also customize the other power version 520nm PM fiber coupled laser diode modules according to the customer’s requirement.

Categories: 520nm Single Mode Fiber Coupled Laser Module, Single Mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser can offer the 520nm 20mW polarization maintaining fiber coupled laser diode modules, and we can also supply the different power version 520nm PM fiber coupled laser diode modules to customers, the higher PER value version laser modules are available. For the near wavelength laser products, we can also offer the 505nm, 520nm, 525nm, 660nm and 785nm laser products to customers.

Product Feature of 520nm 20mW Polarization Maintaining Fiber Coupled Laser Diode Module

Wavelength: 520nm
Output Power: 20mW
Package: Coaxial
Fiber Type: PM Fiber
Fiber Core: 3um
Connector: FC/APC
PER: ＞13dB
Without PD
FP Laser Products

Product Parameter of 520nm 20mW Polarization Maintaining Fiber Coupled Laser Diode Module

Specifications	WSLP-520-020m-PM
	Min	Type	Max
Center Wavelength@25℃	510nm	520nm	530nm
Spectral Width (FWHM)	-	2.0nm	-
Output Power	-	20mW	-
Fiber Type	Polarization Maintaining Fiber
Fiber Core	3um
Polarization Extinction Ratio	13dB	15dB	-
Recommended Operating Temperature	25℃
Fiber Connector	FC/APC
Fiber Length	＞80cm
Threshold Current	-	60mA	95mA
Operating Current	-	240mA	260mA
Operating Voltage	-	7.0V	8.0V
Photodiode	Optional
Package Style	Coaxial or B82
High Polarization Extinction Ratio (PER) Version Laser Module is also available, please contact us.

Product Drawing of 520nm 20mW Polarization Maintaining Fiber Coupled Laser Diode Module

Coaxial Package View: (Part Number: WSLP-520-020m-PM)

B82 Package View: (Part Number: WSLP-520-020m-PM-B)

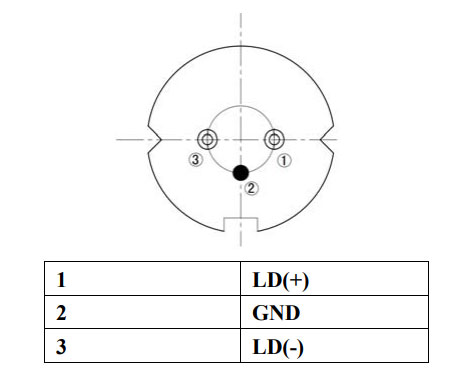

PIN Bottom View:

Electrically shorten LD module and store in non-extreme conditions.
Suggest using the constant current power supply.

Product Application of 520nm 20mW Polarization Maintaining Fiber Coupled Laser Diode Module

Medical Treatment
Biological Detection
Sensing Application

520nm-525nm-532nm-20mw-pm-fiber-coupled-laser-module_815588.pdf
