480nm 60mW FP

480nm 60mW Single Mode FP Laser Diode is TO18 package laser diode, it is with near TEM00 beam and built-in PD. This 480nm 60mW Single Mode FP Laser Diode is violet laser product, it is with high performance and long lifetime. Wavespectrum Laser can also offer the different power version 480nm SM laser diodes to customer.

Categories: 480nm Single Mode Laser Diode, Single Mode Laser Diode

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 480nm 60mW Single Mode FP Laser Diodes, and we can also supply the different power version 480nm SM laser diodes to customers. For the near wavelength laser diode, we can offer the 405nm, 445nm, 488nm, 495nm, 525nm, 530nm, 638nm and 660nm laser diodes to customer.

Product Parameter of 480nm 60mW Single Mode FP Laser Diode

Specifications	WSLD-480-060m-1
	Min	Type	Max
Center Wavelength@25℃	480nm±10nm
Spectral Width (FWHM)	2.0nm
Output Power	-	60mW	-
Emitter	Single
Beam Divergence (FWHM)	-	24°_┴ x 8°_//	26°_┴ x 12°_//
Threshold Current (Typ.)	-	30mA	65mA
Operating Current (Typ.)	-	115mA	130mA
Operating Voltage	-	6.5V	8.0V
Recommended Operating Temperature	25℃

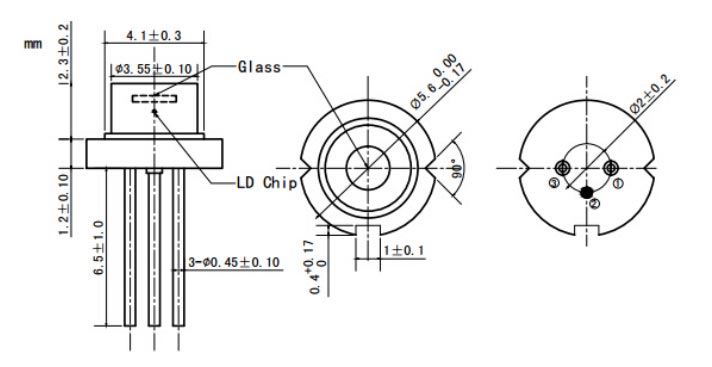

Package Style	TO18

Product Feature of 480nm 60mW Single Mode FP Laser Diode

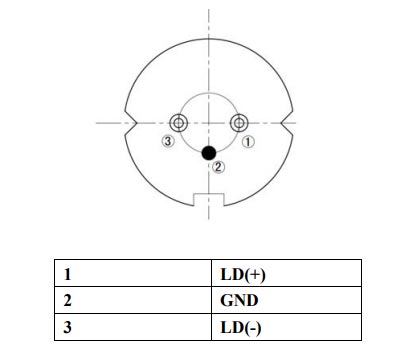

PIN Bottom View:

Electrically shorten LD module and store in non-extreme conditions.
Suggest using the constant current power supply.

Product Application of 480nm 60mW Single Mode FP Laser Diode

Medical Treatment

Biological Detection

Sensing Application
