445nm 80mW HHL Package 105um MMF Pigtailed

445nm 80mW HHL Package 105um MMF Pigtailed Diode laser module is with HHL package, the product size is very compact, it is contained the semiconductor cooler and thermistor, the operator can precisely control the operating temperature of this diode laser module. This 445nm HHL Package 105um MMF Pigtailed Diode laser module is with high coupling efficiency and high performance, this makes it an excellent choice for a wide range of applications. The fiber core of this 405nm laser module is 105um, the numerical aperture is 0.22, the 200um and 400um multi-mode fiber optional, the FC, SC, ST and SMA905 connector is available. Wavespectrum Laser offers product customizations for 445nm HHL Package 105um MMF Pigtailed Diode laser module, tailoring it to meet special customer needs.

Categories: 445nm Multi-mode Fiber Coupled Laser Module, Multi-mode Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser is thrilled to present the 445nm 80mW HHL Package 105um MMF Pigtailed Diode laser module, and we’re also equipped to supply various power versions of 445nm HHL Package 105um MMF Pigtailed Diode laser module to meet our customer’s diverse needs. Additionally, we provide an extensive selection of near wavelength laser products, such as: 375nm, 395nm, 400nm, 405nm, 420nm, 435nm, 455nm, 465nm, 480nm, 505nm and 520nm laser products.

Product Feature of 445nm 80mW HHL Package 105um MMF Pigtailed Diode laser module

Part Number: WSLX-445-080m-M-H8-T

Wavelength: 445nm

Output Power: 80mW

Package: 8-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD Optional

FP Laser Products

Product Parameter of 445nm 80mW HHL Package 105um MMF Pigtailed Diode laser module

Specifications	WSLX-445-080m-M-H8-T
	Min.	Type	Max.
Center Wavelength@25℃	440nm	450nm	460nm
Spectral Width (FWHM)	----	2nm	----
Output Power	----	80mW	----
Recommended Operating Temperature	25 °C
Threshold Current (Typ.)	----	25mA	55mA
Operating Current (Typ.)	----	120mA	140mA
Operating Voltage	----	6.0V	7.0V
TEC Max Current	1.3A
TEC Max Voltage	4.0V
Thermistor	10K
Fiber Type	Multi-mode
Fiber Core	105um(50um Optional)
Fiber Length	>80cm
Connector Type	FC/SC/SMA905
Package Style	8-PIN
Photodiode	Optional

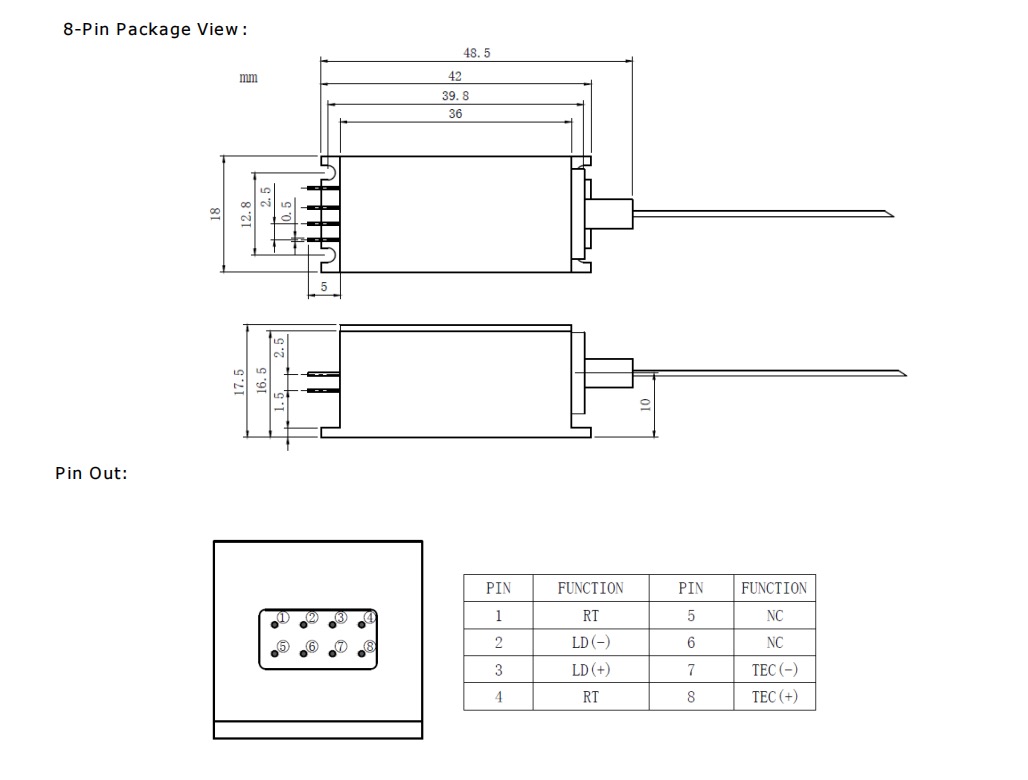

Product Drawing of 445nm 80mW HHL Package 105um MMF Pigtailed Diode laser module

Product Application of 445nm 80mW HHL Package 105um MMF Pigtailed Diode laser module

Medical Treatment

Biological Detection

Sensing Application

445nm-80mw-hhl-package-105um-mmf-pigtailed-diode-laser-module-258752.pdf
