445nm 635nm 15mW

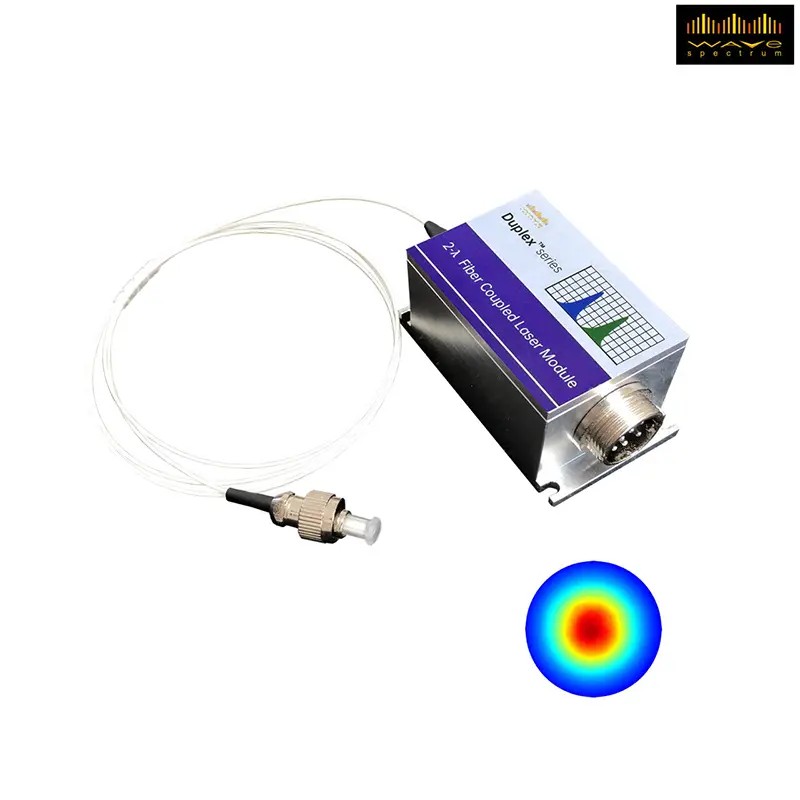

445nm 635nm 15mW 2-Wavelength single mode fiber coupled laser diode module is with 1pc 3um single mode fiber, includes the red laser + blue laser, it can get Gaussian Beam, this laser module size is compact, it is built-in TE cooler and thermistor. This 445nm 635nm 15mW 2-wavelength single mode fiber coupled laser diode module is with high performance and long lifetime, it can get the 2-wavelength blue and red laser light from 1pc 3um SM fiber, the two wavelengths of laser can be operated separated or simultaneously, and can be used as working light or aiming Beam. The 2 wavelengths laser module is included the TE cooler, it will be very convenience for customers to control the operating temperature.
Wavespectrum Laser can also offer the other power version 445nm + 635nm 2-Wavelength single mode fiber coupled laser diode module according to the customer’s requirement.

Categories: 445nm 635nm Duplex Fiber Coupled Laser Module, Duplex 2-Wavelength Fiber Coupled Laser Module

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 445nm 635nm 15mW 2-Wavelength single mode fiber coupled laser diode module, and we can also supply the different power version 445nm + 635nm 2-Wavelength single mode fiber coupled laser diode module to customers. For the near wavelength laser products, we can also customize the 488nm + 635nm dual wavelength laser modules to customers.

Product Feature of 445nm 635nm 15mW 2-Wavelength Single Mode Fiber Coupled Laser Diode Module

Wavelength 1: 445nm 15mW
Wavelength 2: 635nm 15mW
Package: HHL-01
Fiber Type: Single Mode Fiber
Fiber Core: 3um
Connector: FC/SC/SMA905
Built-in TE Cooler
FP Laser Products

Product Parameter of 445nm 635nm 15mW 2-Wavelength Single Mode Fiber Coupled Laser Diode Module

Specifications	Duplex-WSLX-445/015m-635/015m-4-H-T
	Wavelength-1	Wavelength-2
Center Wavelength	450nm±10nm	638nm±10nm
Output Power(CW)	15mW	15mW
Threshold Current(Typ.)	30mA	50mA
Operating Current(Typ.)	120mA	180mA
Operating Voltage	6.0V	2.7V
Recommended Operating Temperature	25°C
TEC Max Current	3.5A
TEC Max Voltage	7.0V
Thermistor	10K
FiberType	Single Mode Fiber
Fiber Core Diameter	3um
Fiber Length	>80cm
Connector Type	FC/SMA905
Package	HHL

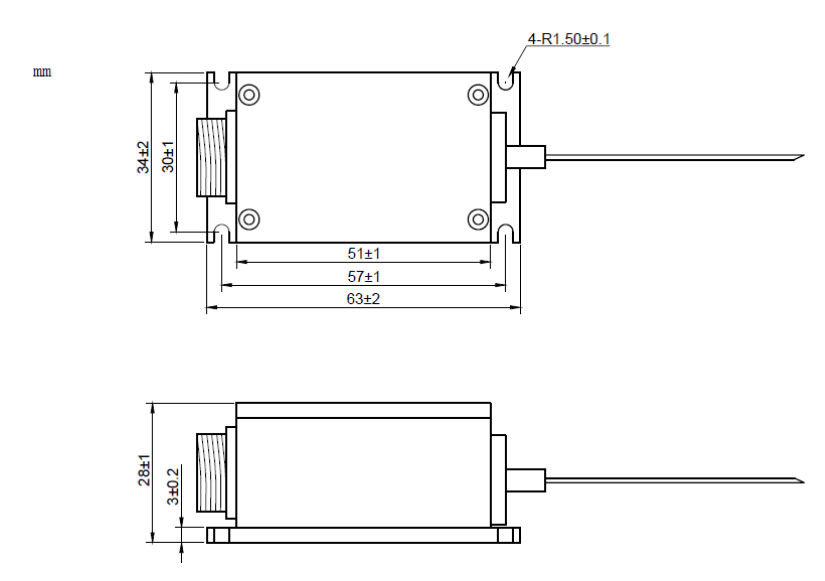

Product Drawing of 445nm 635nm 15mW 2-Wavelength Single Mode Fiber Coupled Laser Diode Module

Package View

Product Application of 445nm 635nm 15mW 2-Wavelength Single Mode Fiber Coupled Laser Diode Module

Medical Treatment
Biological Detection
Sensing Application

445nm-635nm-15mw-2-wavelength-single-mode-fiber-coupled-laser-diode-module_188741.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
