445nm 520nm 635nm 850nm 50mW 105um

445nm 520nm 635nm 850nm 50mW 105um

The 445nm 520nm 635nm 850nm 50mW 4-Wavelength 105um Fiber Coupled Laser Diode Module is with 1pc 105um multi-mode fiber, includes the red laser green laser blue laser infrared laser, this laser module size is compact, it is built-in TE cooler and thermistor. This 445nm 520nm 635nm +785nm 50mW 4-wavelength 105um fiber coupled laser diode module is with high performance and long lifetime, it can get the 4-wavelength laser light from single 105um MM fiber, the four wavelengths of laser can be operated separated or simultaneously, and can be used as working light or aiming Beam. The 4 wavelengths laser module is included the TE cooler, it will be very convenience for customers to control the operating temperature. Wavespectrum Laser can also offer the other power version 445nm 520nm 635nm 850nm 4-Wavelength 105um fiber coupled laser diode module according to the customer’s requirement.

Categories: ,

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 445nm 520nm 635nm 850nm 50mW 4-Wavelength 105um fiber coupled laser diode module, and we can also supply the different power version 445nm 520nm 635nm 850nm 4-Wavelength 105um fiber coupled laser diode module to customers, and we can also customize the fiber according to the customer’s requirement, such as: 50um or 200um multi-mode fiber. For the near wavelength laser products, we can also customize the 488nm 520nm 635nm 850nm 4-wavelength laser modules to customers.

Product Feature of 445nm 520nm 635nm 850nm 50mW 4-Wavelength 105um Fiber Coupled Laser Diode Module

Wavelength 1: 445nm 50mW

Wavelength 2: 520nm 50mW

Wavelength 3: 635nm 50mW

Wavelength 4: 850nm 50mW

Package: HHL-01

Fiber Type: Multi-mode Fiber

Fiber Core: 105um

Connector: FC/SC/SMA905

Built-in TE Cooler

FP Laser Products

Product Parameter of 445nm 520nm 635nm 850nm 50mW 4-Wavelength 105um Fiber Coupled Laser Diode Module



Specifications 445nm 520nm 635nm 850nm 50mW 4-Wavelength 105um Fiber Coupled Laser Diode Module
Wavelength-1 Wavelength-2 Wavelength-3 Wavelength-3
Center Wavelength 450nm±10nm 520nm±10nm 638nm±10nm 850nm±10nm
Output Power (CW) 50mW 50mW 20mW 50mW
Threshold Current (Typ.) 30mA 40mA 50mA 50mA
Operating Current (Typ.) 120mA 200mA 160mA 160mA
Operating Voltage 6.0V 7.0V 2.7V 2.5V
Recommended Case Temperature 25°C
TEC Max Current 3.5A
TEC Max Voltage 7.0V
Thermistor 10K
Fiber Core Diameter 105um
Fiber Numerical Aperture 0.22
Fiber Length >80cm
Connector Type FC/SMA905
Package HHL-03

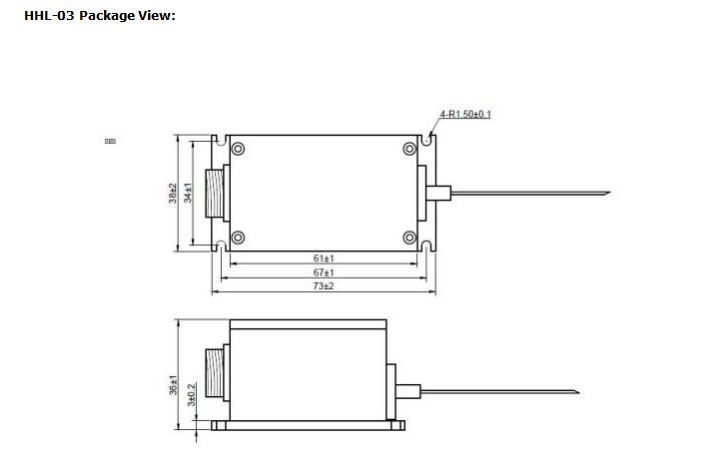

Product Drawing of 445nm 520nm 635nm 850nm 50mW 4-Wavelength 105um Fiber Coupled Laser Diode Module

Product Application of 445nm 520nm 635nm 850nm 50mW 4-Wavelength 105um Fiber Coupled Laser Diode Module

Medical Treatment

Biological Detection

Sensing Application



445nm-520nm-635nm-850nm-50mw-4-wavelength-105um-fiber-coupled-laser-diode-module_591196.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
