445nm 520nm 635nm 50mW 105um

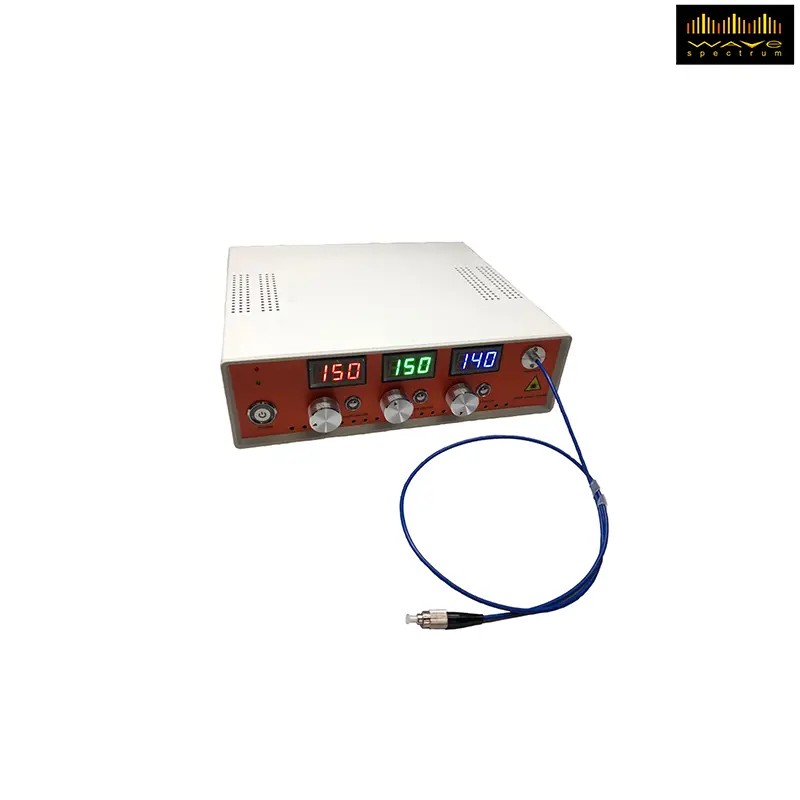

The 445nm 520nm 635nm 50mW 3-Wavelength 105um fiber coupled diode laser source is with 1pc 105um multi-mode fiber, includes the red laser + green laser + blue laser, it can get the white laser light, this laser Source is included the laser drive and TE cooling system, the output power can be adjustable, the operating temperature has been fixed, the input voltage is 90V～240AC, it is very convenience for customers to operate. This 445nm 520nm 635nm 50mW 3-wavelength 105um fiber coupled diode laser source is with high performance and long lifetime, it can get the 3-wavelength RGB laser light from 1pc 105um MM fiber, the three wavelengths of laser can be operated separated or simultaneously, and can be used as working light or aiming Beam. The 3 wavelengths laser source is very easy and safe for customers to use.
Wavespectrum Laser can also offer other power version 445nm 520nm 635nm 3-Wavelength 105um fiber coupled diode laser source according to the customer’s requirement.

Categories: 445nm 520nm 635nm Triplex Fiber Coupled Laser Source, Triplex 3-Wavelength White light Fiber Coupled Laser Source

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.

Wavespectrum Laser can offer the 445nm 520nm 635nm 50mW 3-Wavelength 105um fiber coupled diode laser source, and we can also supply the different power version 445nm 520nm 635nm 3-Wavelength 105um fiber coupled diode laser source to customers. We can customize the fiber according to the customer’s requirement, such as: 50um or 200um multi-mode fiber. For the near wavelength laser products, we can customize the 488nm + 520nm + 635nm 3-wavelength laser system to customers.

Product Feature of 445nm 520nm 635nm 50mW 3-Wavelength 105um Fiber Coupled Diode Laser Source

Wavelength 1: 445nm 50mW
Wavelength 2: 520nm 50mW
Wavelength 3: 635nm 50mW
Fiber Type: Multi-mode Fiber
Fiber Core: 105um
Connector: FC/SC/SMA905
Input Voltage: 90V～240VAC
Built-in TE Cooling System
FP Laser Products

Product Parameter of 445nm 520nm 635nm 50mW 3-Wavelength 105um Fiber Coupled Diode Laser Source

Specification		Triplex-WSLS-RGB-050m-M
Typical Specification(@25C°)		Wavelength-1	Wavelength-2	Wavelength-3
Optical Specifications	Central Wavelength	450nm±10nm	520nm±10nm	638nm±10nm
	Output Power(CW)	0~50mW Adjustable	0~50mW Adjustable	0~50mW Adjustable
	Spectral Width(FWHM)	2nm	2nm	2nm
	Laser Type	FP
Fiber Specifications	Fiber Core	105um(50um,200um Optional)
	N.A.	0.22
	Fiber Type	Multi-Mode Fiber
	FiberLength	>80cm
	Fiber Connector	FC/SMA905/SC/ST
Control Data	Operation Mode	CW(Standard)
		0~20KHz TTL Modulation(Optional)
		0~5V Analog Modulation(Optional)
	Power Stability (for 2 hrs)	1%(Min.)	----	3%(Max.)
	Cooling	Built in TE Cooling
	Control Mode	Auto-Current Control(ACC)
Environmental Conditions	Operation Temperature	+10℃-40℃
	StorageTemperature	-20°C~60℃
	Preheaing Time	<5 mins.
Power Supply	AC(Standard)	90V~240VAC,50~60Hz
	DC(Optional)	+7.5V
Case Model	NO	A-200
Accessory	Collimator	Optional
	Laser SafetyGoggles	Optional

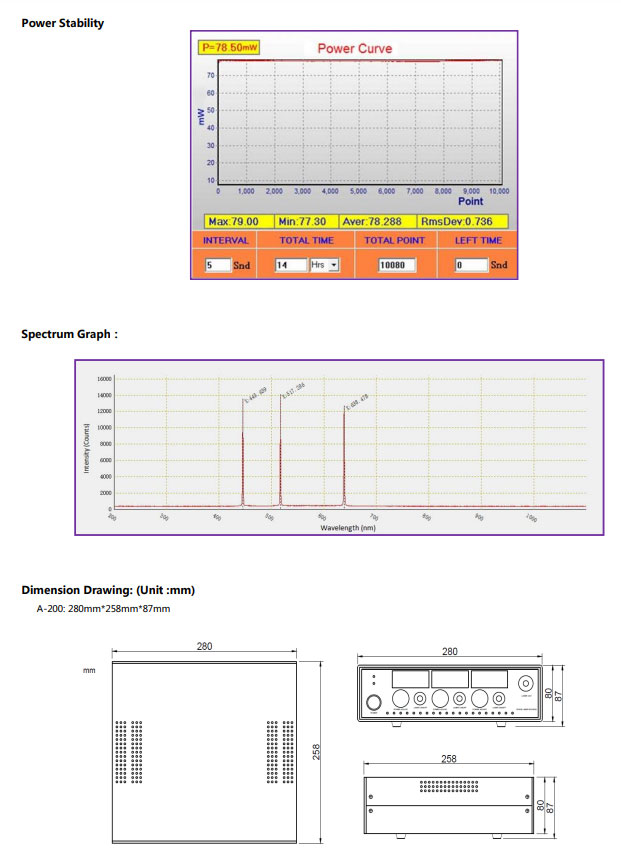

Product Drawing of 445nm 520nm 635nm 50mW 3-Wavelength 105um Fiber Coupled Diode Laser Source

Product Application of 445nm 520nm 635nm 50mW 3-Wavelength 105um Fiber Coupled Diode Laser Source

Medical Treatment
Biological Detection
Sensing Application

488nm-520nm-635nm-10mw-3-wavelength-pm-fiber-coupled-laser-diode-module_96927-2.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
