425nm 1W 14-Pin Butterfly 105um Pigtailed

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser is delighted to introduce our 425nm 1W 14-Pin butterfly 105um fiber pigtailed diode laser module. We are also well-prepared to deliver various power configurations of the 425nm 14-Pin butterfly 105um fiber pigtailed diode laser module, ensuring we meet the diverse needs of our customers. In addition, we offer a comprehensive portfolio of near wavelength laser products, which encompasses 400nm, 455nm, 480nm, 488nm, 495nm, 505nm, 520nm, 635nm, 660nm, and 670nm laser options.

Categories: ,

Inquiry

Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser is delighted to introduce our 425nm 1W 14-Pin butterfly 105um fiber pigtailed diode laser module. We are also well-prepared to deliver various power configurations of the 425nm 14-Pin butterfly 105um fiber pigtailed diode laser module, ensuring we meet the diverse needs of our customers. In addition, we offer a comprehensive portfolio of near wavelength laser products, which encompasses 400nm, 455nm, 480nm, 488nm, 495nm, 505nm, 520nm, 635nm, 660nm, and 670nm laser options.

Product Feature of 425nm 1W 14-Pin butterfly 105um fiber pigtailed diode laser module

Part Number: WSLX-425-001-M-H14-T-PD

Wavelength: 425nm

Output Power: 1W

Package: 14-Pin

Fiber Core: 105um

Connector: FC/SC/SMA905/ST

Built-in TE Cooler

Built-in PD

FP Laser Products

Product Parameter of 425nm 1W 14-Pin butterfly 105um fiber pigtailed diode laser module

SpecificationsWSLX-425-001-M-H14-T-PD
Min.TypeMax.
Center Wavelength@25℃425nm±10nm
Spectral Width (FWHM)----2nm----
Output Power----1W----
Recommend Operating Temperature25 °C
Threshold Current (Typ.)----150mA----
Operating Current (Typ.)----800mA----
Operating Voltage----4.5V----
TEC Max Current2A
TEC Max Voltage8V
Fiber TypeMulti-mode Fiber
Fiber Core105um(50um, 62.5um optional)
Fiber Length>80cm
Connector TypeSMA905/FC
Package14-Pin

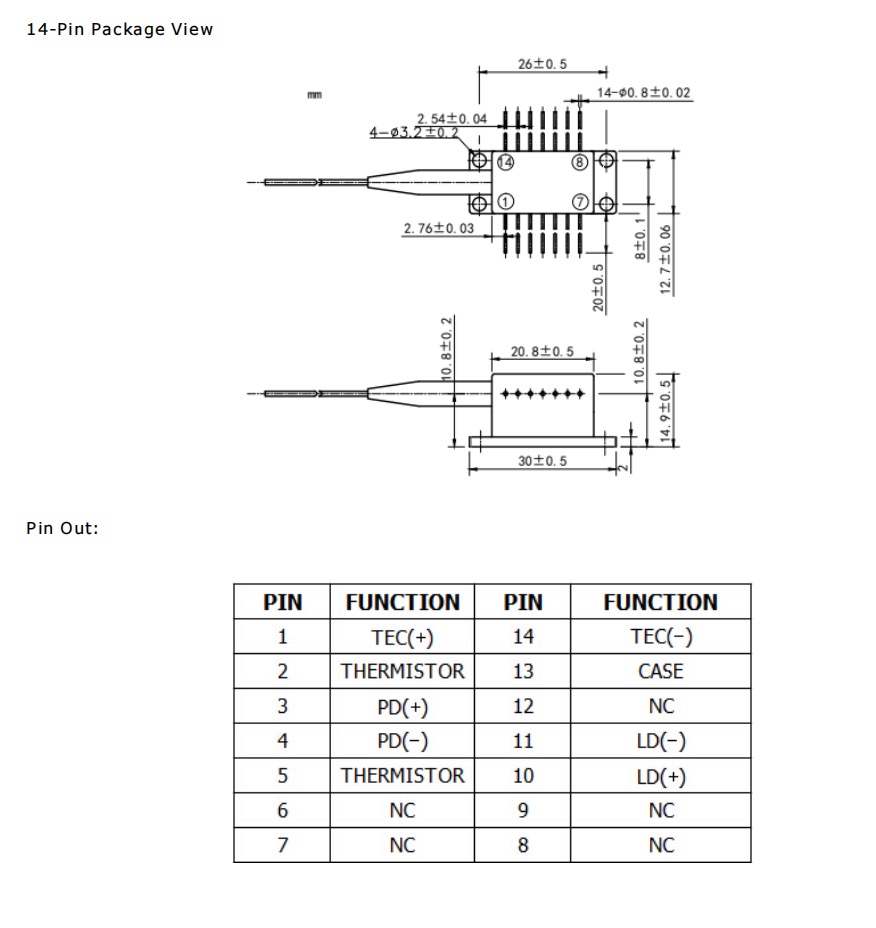

Product Drawing of 425nm 1W 14-Pin butterfly 105um fiber pigtailed diode laser module

Product Application of 425nm 1W 14-Pin butterfly 105um fiber pigtailed diode laser module

Medical Treatment

Biological Detection

Sensing Application

425nm-1w-14-pin-butterfly-105um-fiber-pigtailed-diode-laser-module-263228.pdf

FAQs

For more questions visit our help center.

How do I choose the right model?

Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.

What are the advantages of your lasers?

Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.

Can the laser be controlled by an external signal?

Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.

What about product quality and warranty?

We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
