Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser can offer the 405nm 20mW Single Mode Laser Diode, and we can also supply the different power version 405nm SM laser diodes to customers. For the near wavelength laser diode, we can offer the 445nm, 480nm, 488nm, 495nm, 505nm, 520nm, 635nm and 660nm laser diodes to customer.
Product Feature of 405nm 20mW SM Laser Diode
Part number:WSLD-405-20m-1-PD
Wavelength: 405nm
Output Power: 20mW
Package: TO18
Built-in PD
FP Laser Products
Product Parameter of 405nm 20mW Single Mode Laser Diode
| Specifications | WSLD-405-020m-1-PD | ||
| Min | Type | Max | |
| Center Wavelength@25℃ | 405nm±10nm | ||
| Spectral Width (FWHM) | 2.0nm | ||
| Output Power | - | 20mW | - |
| Emitter | Single | ||
| Beam Divergence (FWHM) | 15°┴ x5°// | 19°┴ x 9°// | 24°┴ x 12°// |
| Monitor Current | - | 0.2mA | - |
| PD Reverse Voltage | - | - | 30V |
| Recommended Operating Temperature | 25℃ | ||
| Slope Efficiency | 0.7mW/mA | 1.1mW/mA | - |
| Threshold Current (Typ.) | - | 25mA | - |
| Operating Current (Typ.) | - | 45mA | - |
| Operating Voltage | - | 4.8V | 5.8V |
| Package Style | TO18(5.6mm) | ||
Product Drawing of 405nm 20mW Single Mode Laser Diode
TO18(5.6mm) Package View

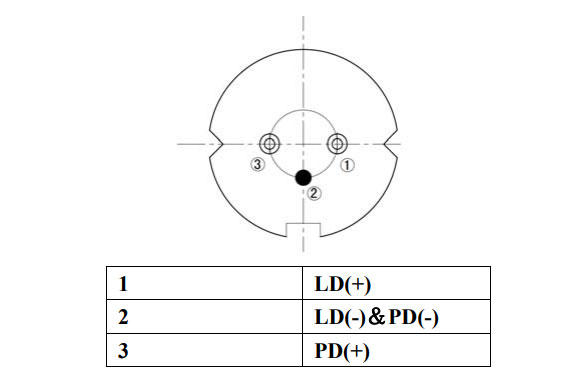

PIN Bottom View:
Electrically shorten LD module and store in non-extreme conditions.
Suggest using the constant current power supply.
Product Application of 405nm 20mW Single Mode Laser Diode
Medical Treatment
Biological Detection
Sensing Application
