Wavespectrum Laser is a manufacturer of the quality and high performance diode laser products, we are committed to developing, producing and selling high performance laser products. The wavelength range is wide, product packaging variety, single mode fiber, multi-mode fiber and polarization maintaining fiber is available. We strictly control the product quality and have earned wide praise from customers all over the world with their outstanding performance.
Wavespectrum Laser can offer the 1470nm 2.5W 14-Pin fiber detachable laser modules, and we can also supply the different power version 1470nm 14-Pin fiber detachable laser modules to customers. For the near wavelength laser products, we can also offer the 915nm, 940nm, 980nm, 1064nm, 1310nm, 1450nm and 1550nm laser products to customers.
Product Feature of 1470nm 2.5W 14-Pin Fiber Detachable Diode Laser Module
Wavelength: 1470nm
Output Power: 2.5W
Package: 14-Pin Detachable
Suit for 200um MM Fiber
Connector: SMA905
Built-in TE Cooler
Red Aiming Beam Optional
Fiber Detection Function Optional
FP Laser Products
Product Parameter of 1470nm 2.5W 14-Pin Fiber Detachable Diode Laser Module
| Specifications | WSLR-1470-2500m-200M-H14-T-PD-A | |||
| Min | Type | Max | ||
| Center Wavelength@25℃ | ±10nm | 1470nm | ±30nm | |
| Spectral Width (FWHM) | - | 7.0nm | - | |
| Output Power | - | 2.5W | - | |
| Used Fiber Core | 200um (105um , 400um Optional) | |||
| Recommended Operating Temperature | 25℃ | |||
| Detachable Fiber Connector | SMA905 | |||
| Threshold Current (Typ.) | - | 0.8A | 1.5A | |
| Operating Current (Typ.) | - | 11.0A | 12.0A | |
| Operating Voltage | - | 1.7V | 2.2V | |
| TEC MAX Current | 6A | |||
| TEC Max. Voltage | 9.8V | |||
| Thermistor | 10K | |||
| Package Style | 14-Pin | |||
| Fiber Detection Function | Optional | |||
| Aiming Beam | Standard | ＞2mW@(650nm±20nm) (Red) | ||
| Optional | ＞2mW@520nm (Green) | |||
Product Drawing of 1470nm 2.5W 14-Pin Fiber Detachable Diode Laser Module

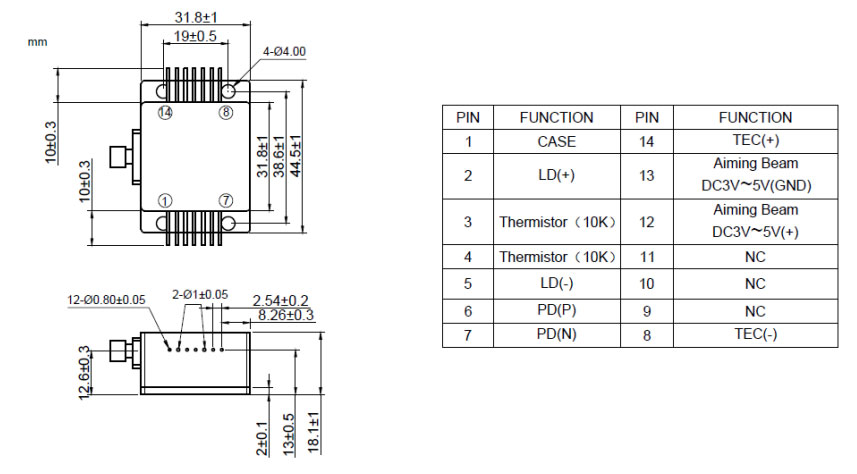

14-Pin Package View (Without Fiber Detection Function) :
(Part Number: WSLR-1470-2500m-200M-H14-T-PD-A)

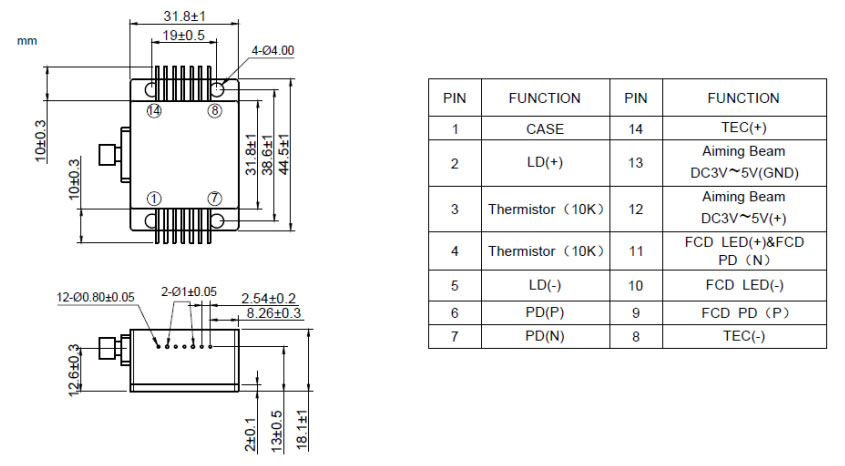

14-Pin Package View (With Fiber Detection Function) :
(Part Number: WSLR-1470-2500m-200M-H14-T-FD-PD-A)
Electrically shorten LD module and store in non-extreme conditions.
Suggest using the constant current power supply.
Product Application of 1470nm 2.5W 14-Pin Fiber Detachable Diode Laser Module
Medical Treatment
Biological Detection
Sensing Application
For more questions visit our help center.
Select based on the wavelength, output power, and fiber connector (e.g., SMA905) you require. Please inform us if you need special modulation.
Our lasers feature thermoelectric cooling and precise temperature control, ensuring more stable output, superior beam quality, and a longer lifespan for demanding applications.
Yes. Most models support TTL modulation, allowing you to quickly switch the laser or adjust its intensity via an external signal.
We offer an 18-month warranty, and each unit undergoes rigorous aging tests to ensure reliability and a long service life.
