785nm 1.5W 50um LD

785nm 1.5W 50μm レーザーダイオード

ウェーブスペクトラム・レーザーは、高品質で高性能なダイオードレーザー製品のメーカーです。当社は高性能レーザー製品の開発、製造、販売に力を注いでおります。波長範囲は広く、製品パッケージも多様で、シングルモードファイバー、マルチモードファイバー、偏波保持ファイバーに対応しています。製品品質を厳格に管理し、その卓越した性能により世界中の顧客から高い評価を得ています。.

Wavespectrum Laser is excited to present our 785nm 1.5W 50um multi-mode fiber coupled LD module. Furthermore, we are capable of providing customized power variants of the 785nm 50um multi-mode fiber coupled LD module as per client requirements. Moreover, we offer a wide array of near wavelength laser products, including 780nm, 7855nm, 790nm, 820nm,850nm, 860nm, 940nm, 976nm, 980nm and 1064nm lasers.

カテゴリー: ,

お問い合わせ

ウェーブスペクトラム・レーザーは、高品質で高性能なダイオードレーザー製品のメーカーです。当社は高性能レーザー製品の開発、製造、販売に力を注いでおります。波長範囲は広く、製品パッケージも多様で、シングルモードファイバー、マルチモードファイバー、偏波保持ファイバーに対応しています。製品品質を厳格に管理し、その卓越した性能により世界中の顧客から高い評価を得ています。.

Wavespectrum Laser is excited to present our 785nm 1.5W 50um multi-mode fiber coupled LD module. Furthermore, we are capable of providing customized power variants of the 785nm 50um multi-mode fiber coupled LD module as per client requirements. Moreover, we offer a wide array of near wavelength laser products, including 780nm, 7855nm, 790nm, 820nm,850nm, 860nm, 940nm, 976nm, 980nm and 1064nm lasers.

Product Feature of 785nm 1.5W 50um Multi-mode Fiber Coupled LD Module

Part Number: WSLX-785-1500m-50M-H2

波長:785nm

出力電力:1.5W

パッケージ: 2ピン

ファイバーコア:50μm

コネクタ: FC/SC/SMA905/ST

PDなし

FPレーザー製品

Product Parameter of 785nm 1.5W 50um Multi-mode Fiber Coupled LD Module

仕様WSLX-785-1500m-50M-H2
Minタイプマックス
中心波長@25℃±5nm785ナノメートル±10nm
スペクトル幅(FWHM)----3ナノメートル----
出力電力1.0W1.5W----
波長の温度係数----0.3nm/℃----
しきい値電流(標準値)----0.3A0.6A
動作電流(標準)----2.2A2.5A
動作電圧----1.8V2.2V
勾配効率0.8W/A
ファイバーコア径50マイクロメートル
ファイバー開口数0.22
繊維長80cm以上
コネクタタイプ
パッケージスタイル2ピン-02
推奨動作温度25℃

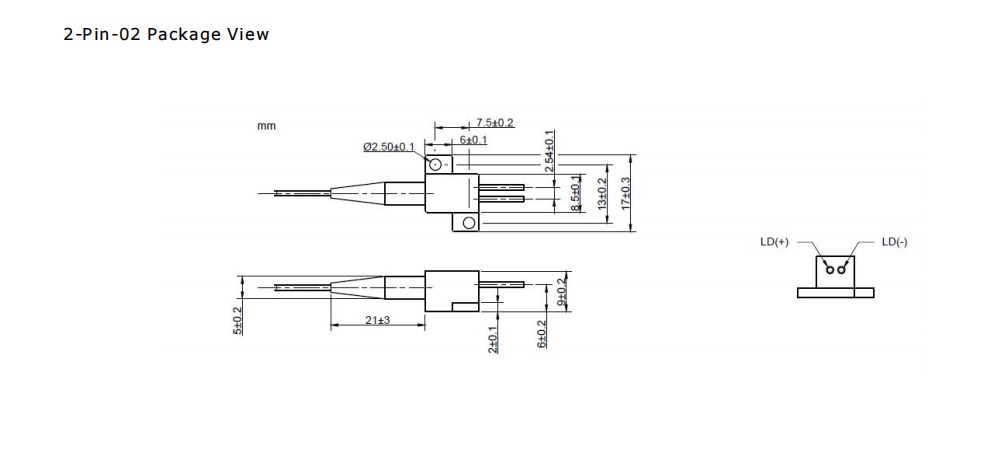

Product Drawing of 785nm 1.5W 50um Multi-mode Fiber Coupled LD Module

Product Application of 785nm 1.5W 50um Multi-mode Fiber Coupled LD Module

医療処置

生物学的検出

センシングアプリケーション

785nm-1-5w-50um-multi-mode-fiber-coupled-ld-module-71113.pdf

よくある質問

その他のご質問については、ヘルプセンターをご覧ください。.

適切なモデルをどのように選べばよいですか?

以下に基づいて選択してください 波長、出力電力、および光ファイバーコネクタ (例:SMA905) 必要なものを明記してください。特別な変調が必要な場合はお知らせください。.

御社のレーザーの利点は何ですか?

当社のレーザーの特徴 熱電冷却と精密温度制御, より安定した出力、優れたビーム品質、そして過酷な用途における長寿命を保証します。.

レーザーは外部信号で制御できますか?

はい。ほとんどのモデルがサポートしています。 TTL変調, これにより、外部信号を介してレーザーを素早く切り替えたり、その強度を調整したりすることが可能になります。.

製品の品質と保証についてはどうですか?

当社は提供します 18ヶ月保証, 各ユニットは、信頼性と長寿命を確保するため、厳格な経年試験を実施しています。.
